Features:

Brand new high quality

Made of high-quality materials for durability

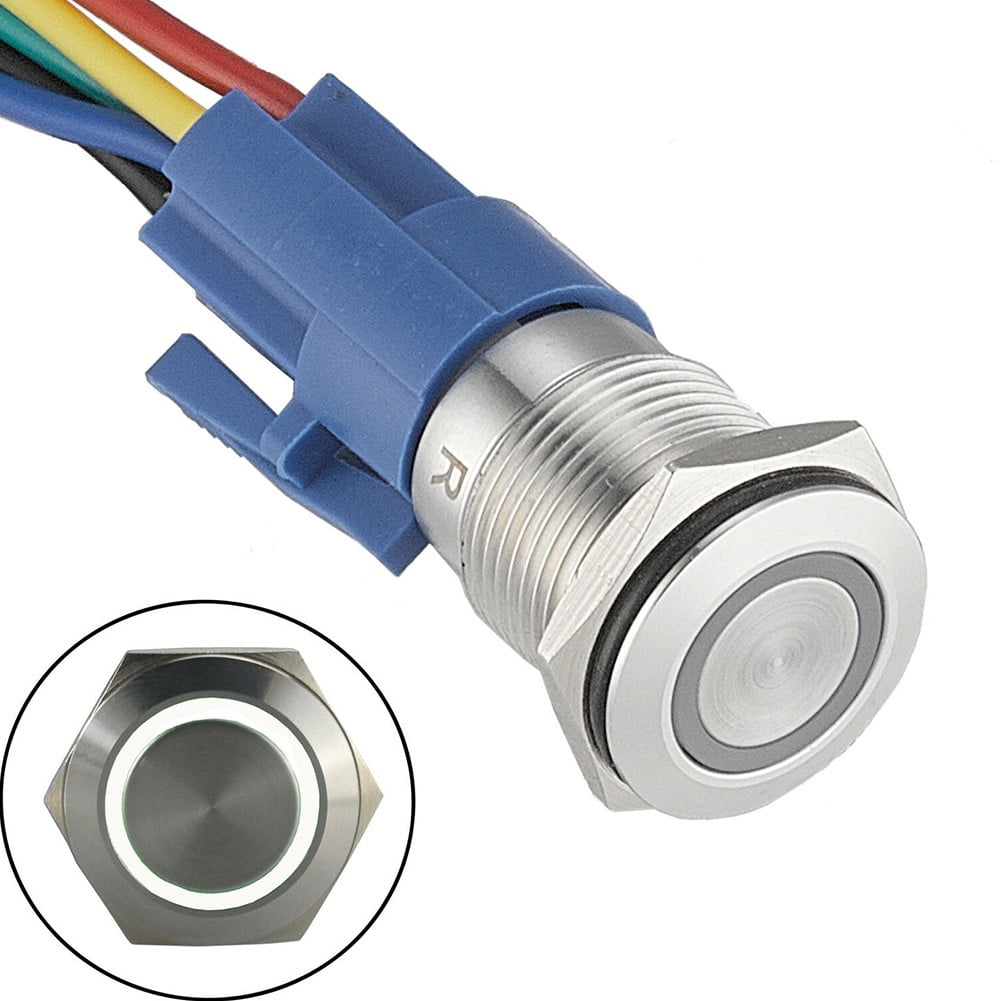

19mm Locking Push Button Switch 12V DC Switch Stainless Steel LED Self Locking.

New Silver Stainless Steel Ring LED Pushbutton Switch.

High-quality metal material and IP65 waterproof protection can be used in wet or dusty environments.

Product parameters:

Type: Push Button Switch

Available colors: Blue, Red, Green, White, Yellow

LED voltage: 12V-24V

Required hole size: 0.74'/19mm (approx.)

Lock switch: press, ON; press again, OFF.

Touch configuration: 1NO1NC

Switch Rating: 5A/250VAC

Working temperature: -20~+55℃

Mechanical life: 1,000,000 cycles

Electrical life: 200,000 cycles

Panel thickness: 1-10mm (approx.)

Protection class: IP65, IK10

Type: Latch

LED Rating: 15mA, AC/DC 12V

LED Pattern: Ring Indicator

Touch Material: Silver Alloy

Button material: stainless steel

Package Included:

1 * push button switch

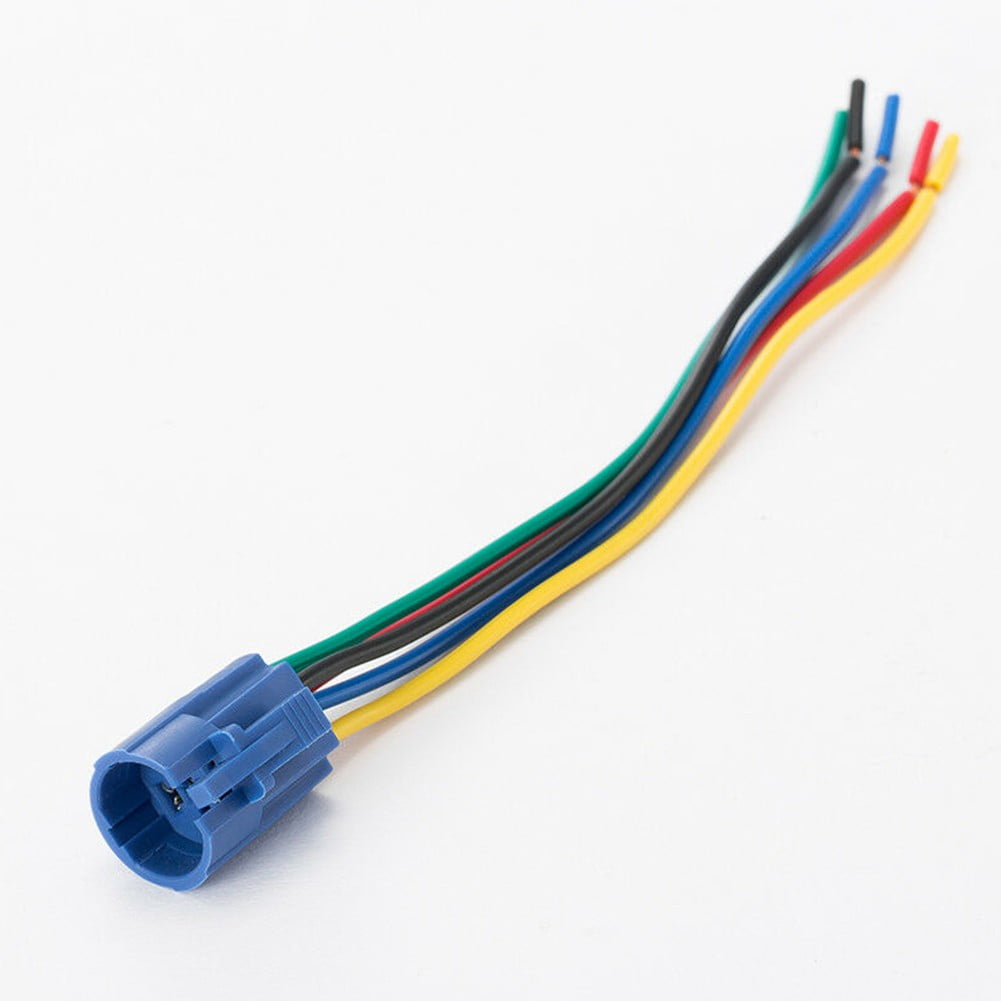

1 * pigtail socket

Note:

1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2.Please allow slight manual measurement deviation for the data.

• 【Stainless Steel Construction】Crafted with stainless steel, this 19mm latching push button switch is for durable and resistant to rust, long-lasting performance. It is designed to withstand wet or dusty environments with its IP65 waterproof protection. • 【LED Ring Indicator】Featuring a sleek silver stainless steel ring with an LED light, this push button switch offers a visually appealing and clear indication of its status. The LED light has a voltage rating of 12V-24V for enhanced visibility. • 【Simple Locking Mechanism】With its self-locking feature, this switch provides convenient ON/OFF control. Press the button to turn it ON, and press it again to turn it OFF. The latch mechanism ensures a secure and reliable operation. • 【Applications】Suitable for various applications, this push button switch is commonly used in industrial equipment, machinery, automotive projects, and more. Its 1NO1NC touch configuration and 5A/250VAC switch rating offer flexibility in wiring options. • 【Easy Installation】Designed for easy installation, this switch requires a 19mm hole size and can be mounted on panels with a thickness of 1-10mm. It comes with a pigtail socket for quick and straightforward wiring.
