Precision Fillet Radius Gauge - Your Essential Tool for Accurate Arc Measurement

Effortlessly measure and verify internal and external corner radii with our Precision Fillet Radius Gauge. This compact and lightweight tool is crafted from durable plastic, making it an indispensable asset for designers, engineers, crafters, and DIY enthusiasts who require accurate arc profiling.

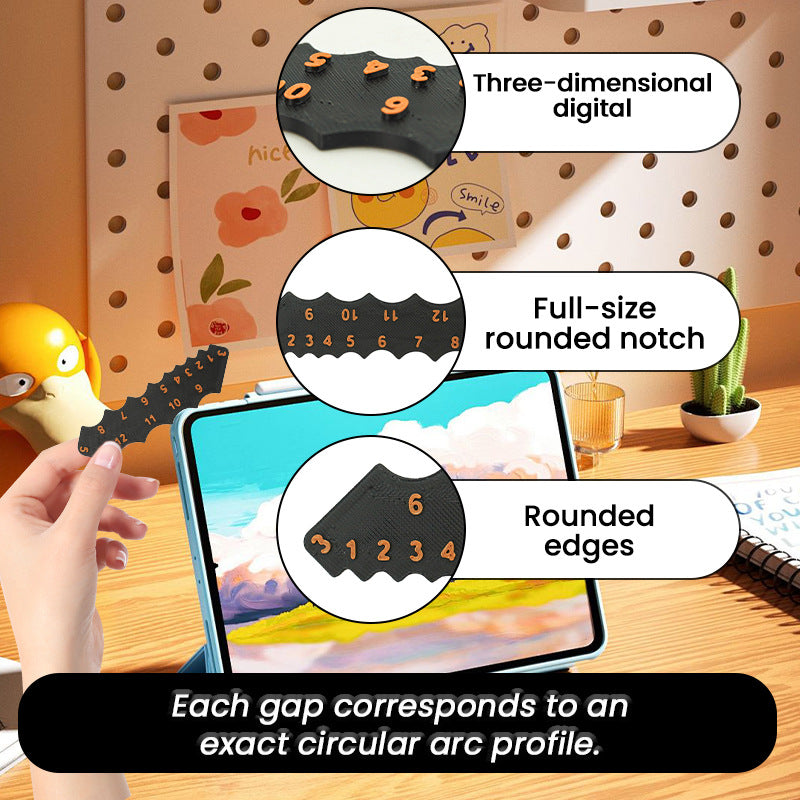

• Accurate Measurement: Clearly marked with a range of common radii from R1mm to R12mm, allowing for quick and precise identification of circular arc profiles. Each gap corresponds to an exact circular arc.
• Durable Plastic Construction: Made from high-quality, sturdy plastic for longevity and resilience in various working environments.
• Clear & Easy to Read: Features distinct, three-dimensional (embossed) numerals for excellent visibility and wear resistance, ensuring markings do not fade easily over time.
• Ergonomic & Safe Design: Designed with smooth, rounded edges for comfortable handling and to prevent scratching of delicate surfaces during measurement.

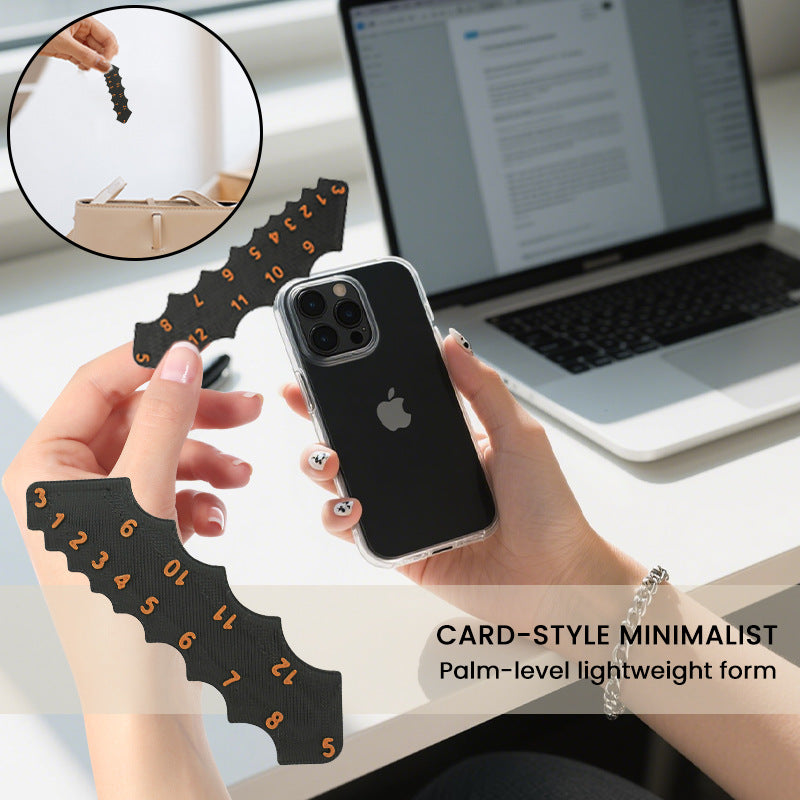

• Compact & Portable: Card-style minimalist design (approximately 9.3cm x 2.5cm) fits easily into your pocket, toolbox, or design kit. Its palm-level lightweight form (approximately 4g) makes it incredibly convenient to carry anywhere.

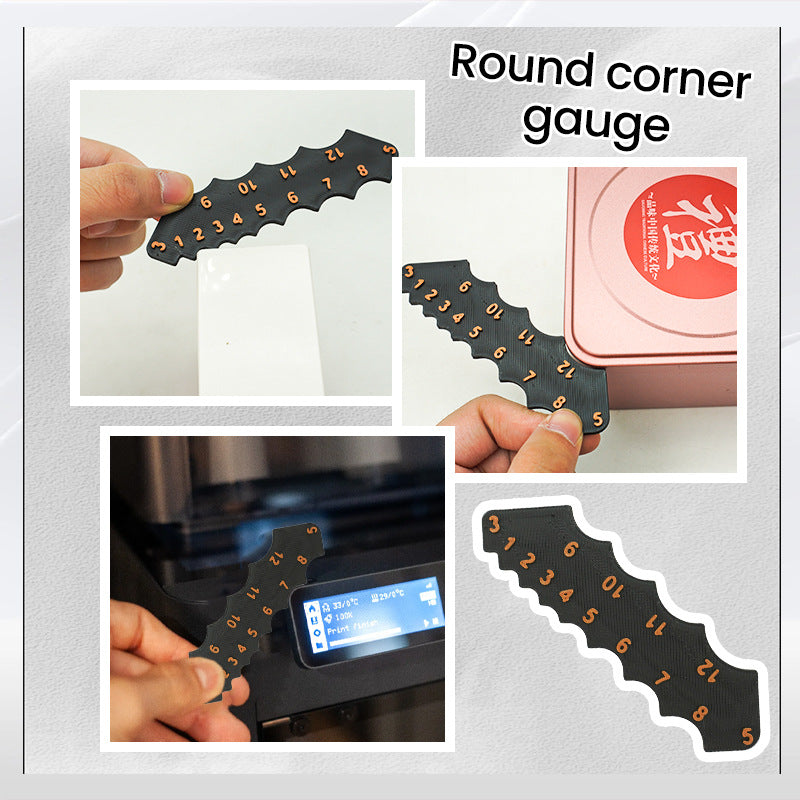

• Versatile Application: Ideal for checking radii of corners, edges, patterns, machined parts, and more in fields like woodworking, metalworking, graphic design, 3D printing, and quality control.

Product Specifications:

• Product Name: Fillet Radius Gauge
• Material: Plastic
• Measurement Range: R1, R2, R3, R4, R5, R6, R7, R8, R9, R10, R11, R12 (likely in mm)

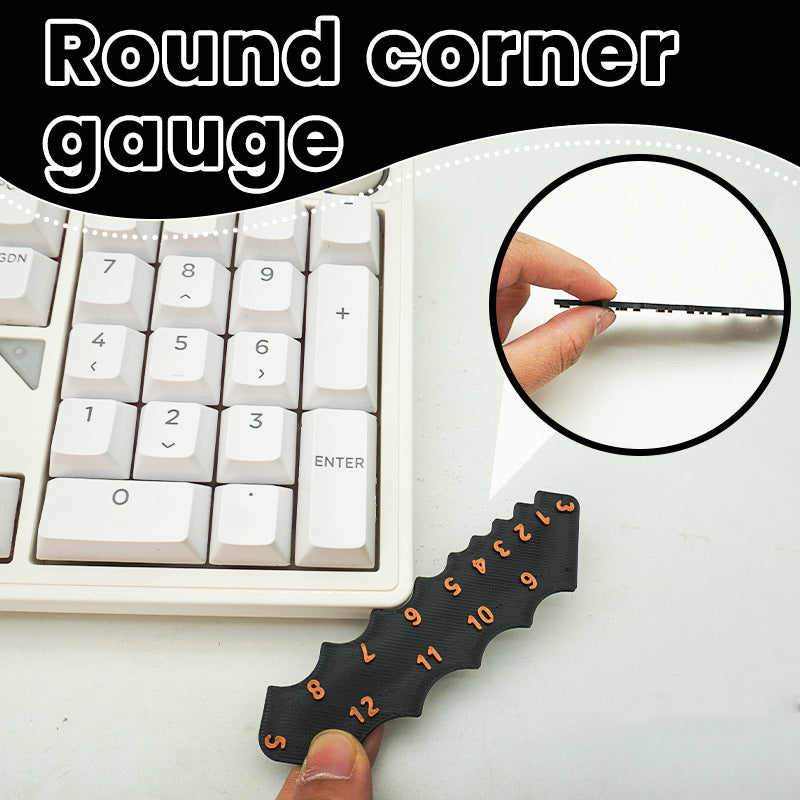

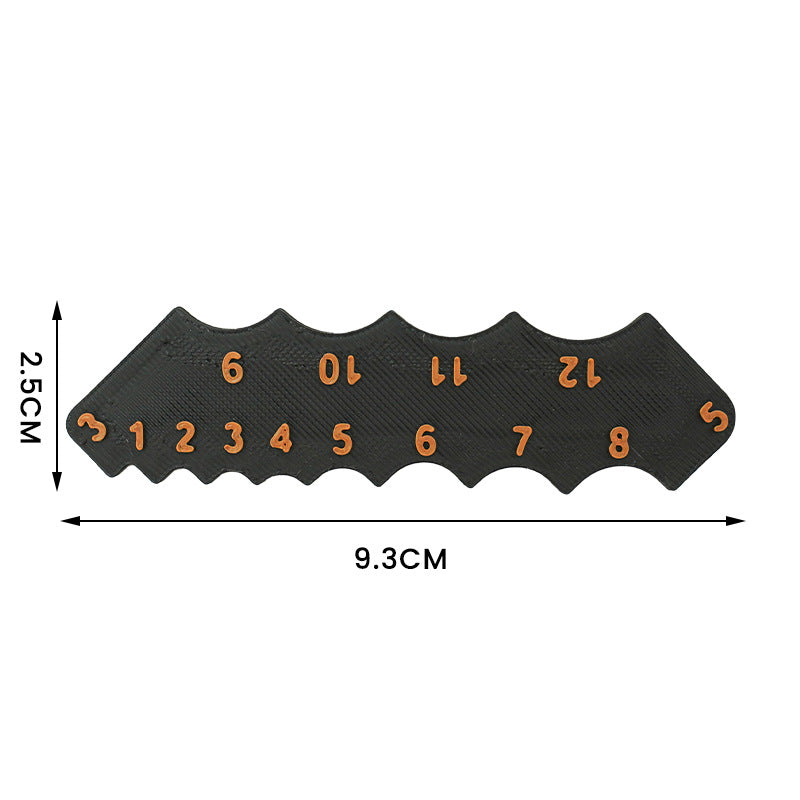

• Dimensions: Approximately 9.3cm x 2.5cm x 0.2cm
• Weight: Approximately 4g
• Features: Embossed numerals, full-size rounded notches, rounded tool edges

Package Includes:

• 1 x Plastic Fillet Radius Gauge
