Specifications:

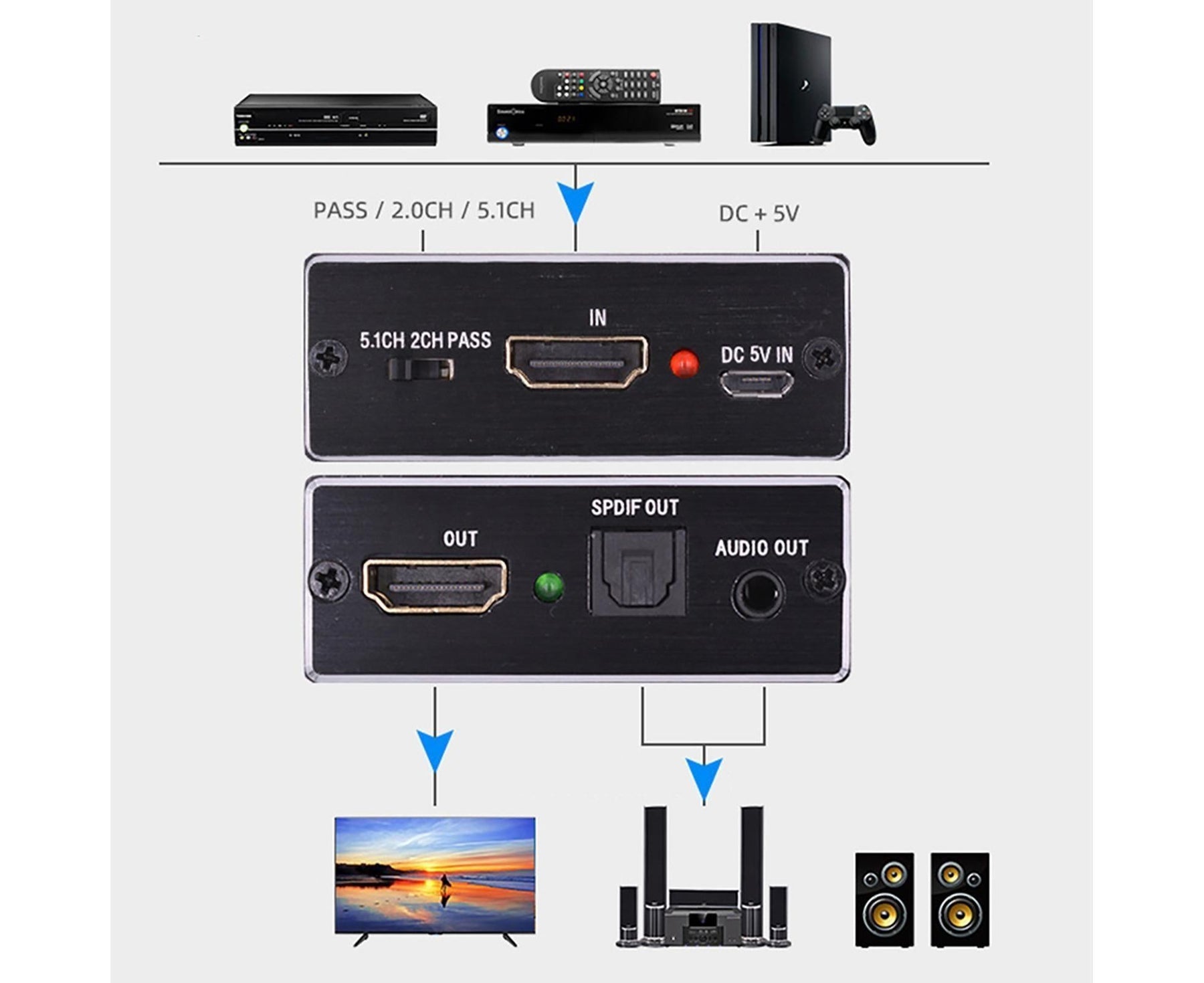

The converter can convert one HDMI-compatible signal input into one HDMI-compatible+Audio (SPDIF+R/L) output.
It can realize audio synchronization and separate output, with PASS, 2.0CH, 5.1CH three audio modes to choose from.
The audio converter also has LED indicator light, when the signal source or signal terminal is in working state, the corresponding indicator light will light up.
No signal loss, it can realize high quality audio transmission.

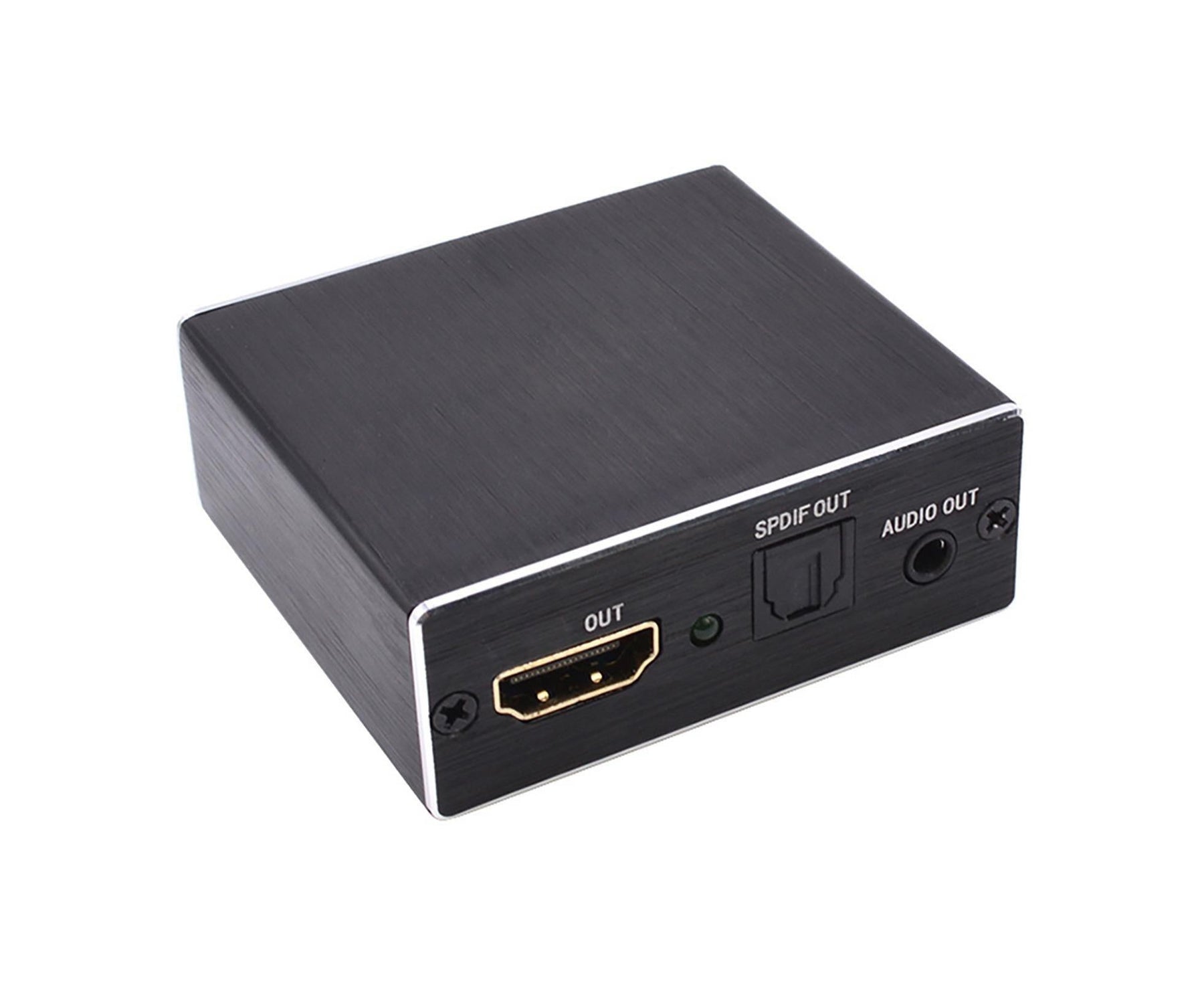

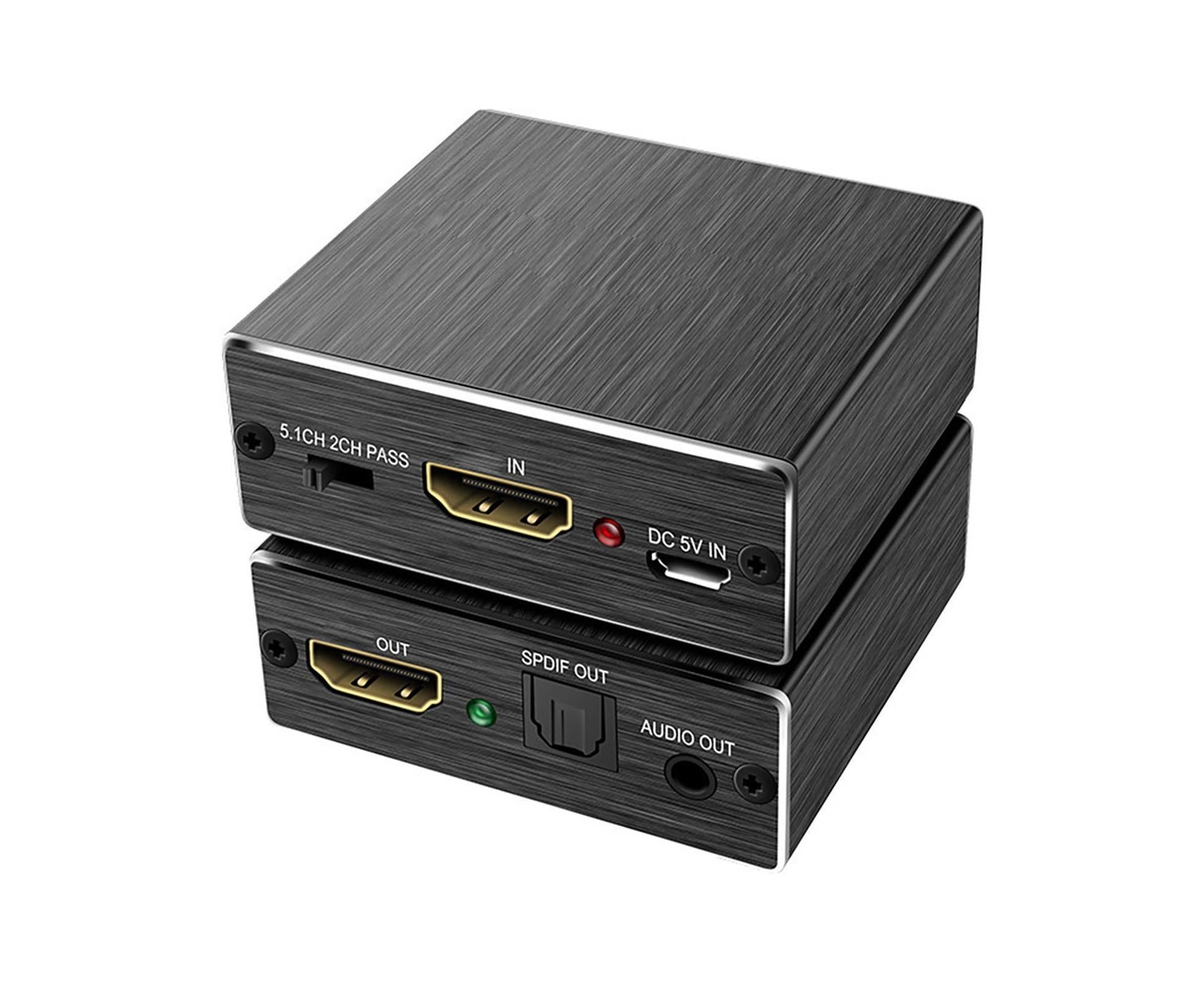

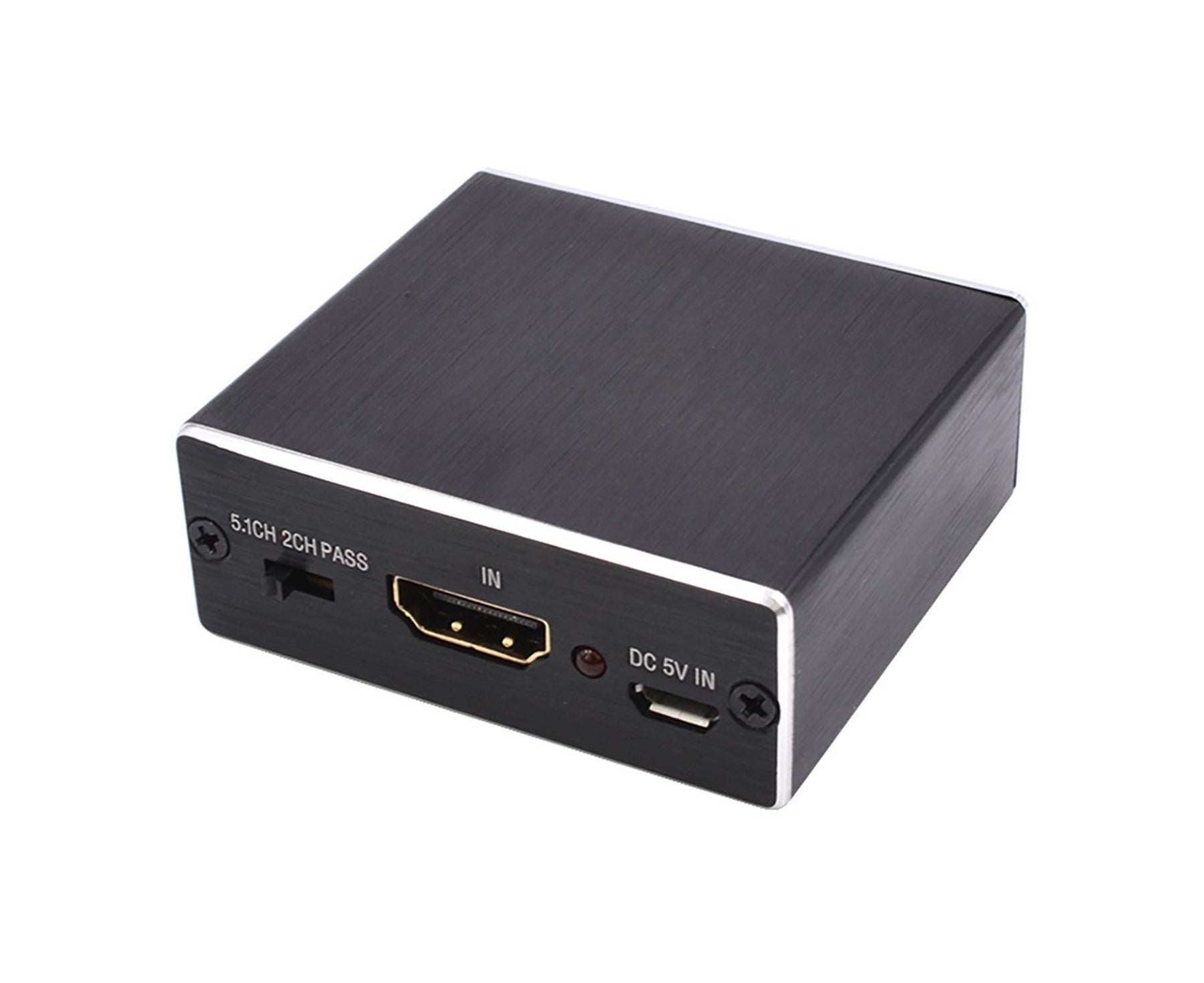

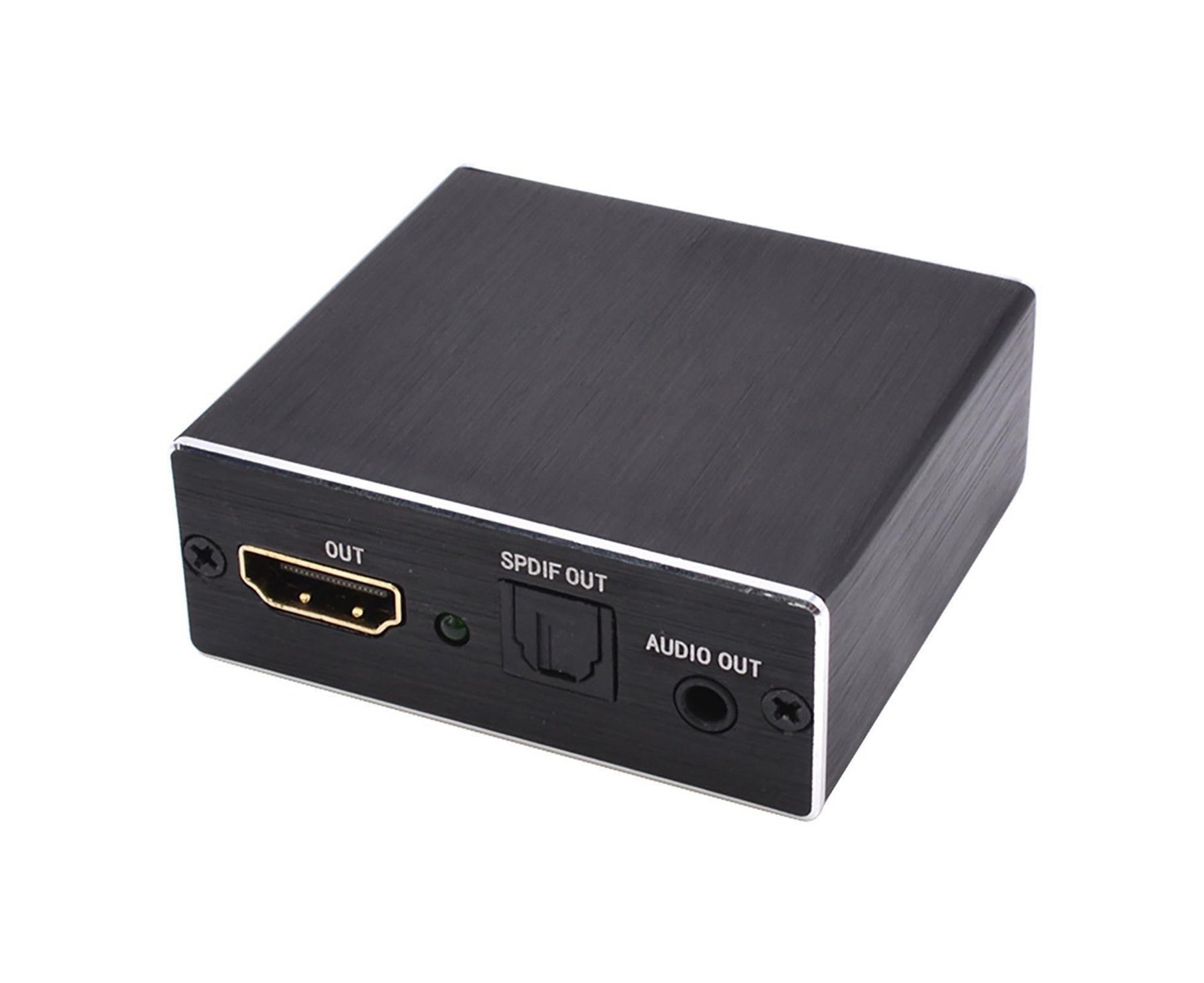

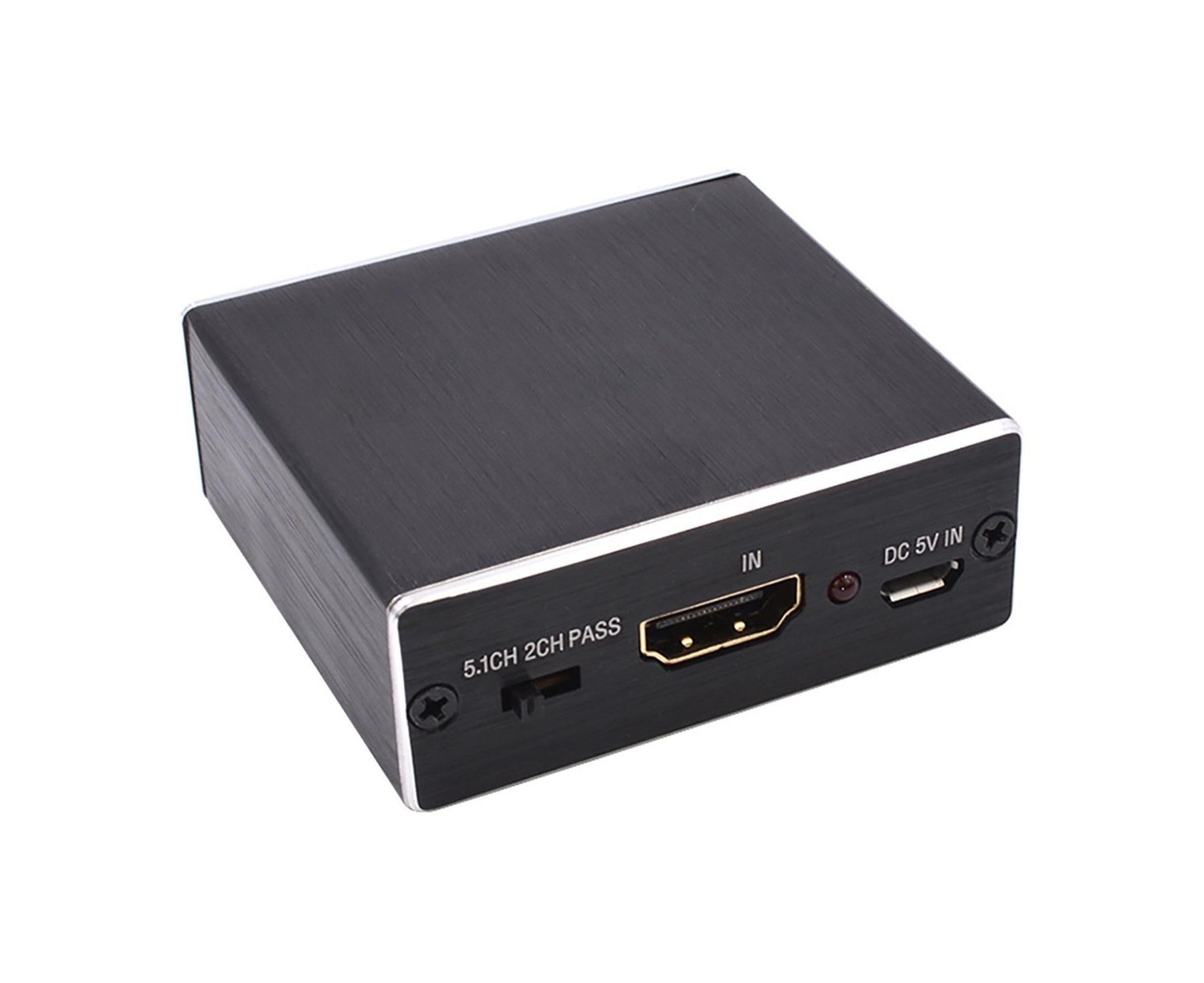

Item Name: HDMI-compatible to HDMI-compatible+Audio Converter
HDMI-compatible Resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support Audio Output: SPDIF+ analog R/L
Input Support: High Support 1080P (50/60 Hz)
Support Video Color Format: 24bit/deep color 30bit, 36bit
Audio Output: Left And Right Channels And Optical Output
Large Transmission Bandwidth: 225MHz
Big Baud Rate: 6.75Gbps
Input/Output TMDS Signal: 0.5 - 1.5Volts p-p
Input/Output DDC Signal: 5Volts p-p (TTL)
Input Cable Length: 15m AWG26 HDMI-compatible Standard Cable
Output Cable Length: 20m AWG26 HDMI-compatible Standard Cable
Large Working Current: 500mA
Power Adapter Specifications: Input: AC (50HZ, 60HZ) 100V-240V
Output: DC5V/1A
Operating Temperature Range: -15 to +55 Degrees Celsius
Working Humidity Range: 5 to 90%RH (Non-condensing)
Features: Easy Operation, Durable, High Definition
Size: 5.8cm x 4.8cm x 2.2cm/2.28&quot
x 1.89&quot
x 0.87&quot
(Approx.)

Notes:
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.

Package Includes:
1 x Host
1 x User Manual
1 x USB Cable
