Specifications:
It has advantages of no need to drive, light and flexible, plug and play.
It adopts high-quality scaling technology to handle input resolution.
The converter supports NTSC and PAL two standard TV mechanism output.
It supports HDMI-compatible 1.4b and backward compatible.
This converter supports OSD function, make users know the resolution of converter input clearly.

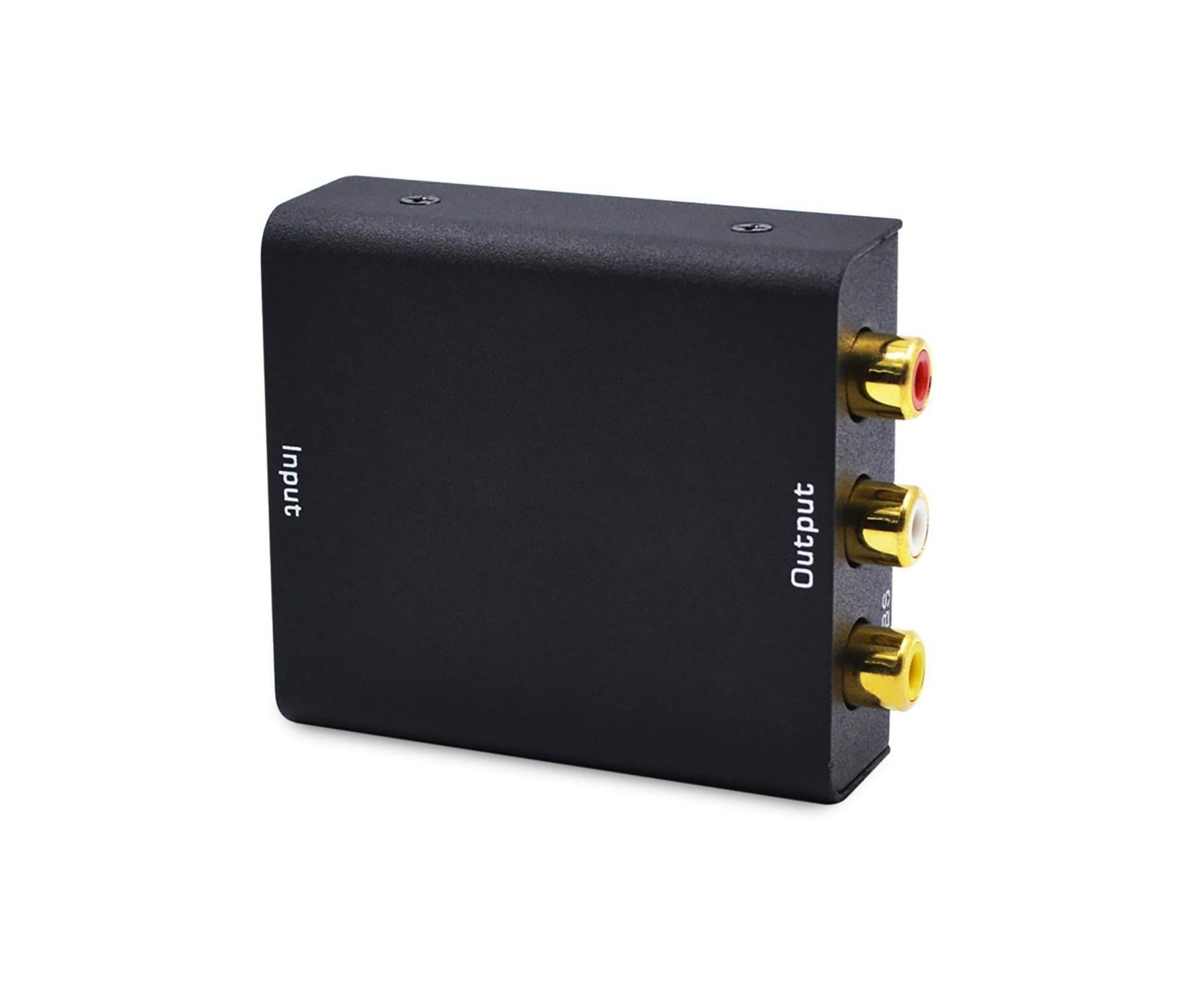

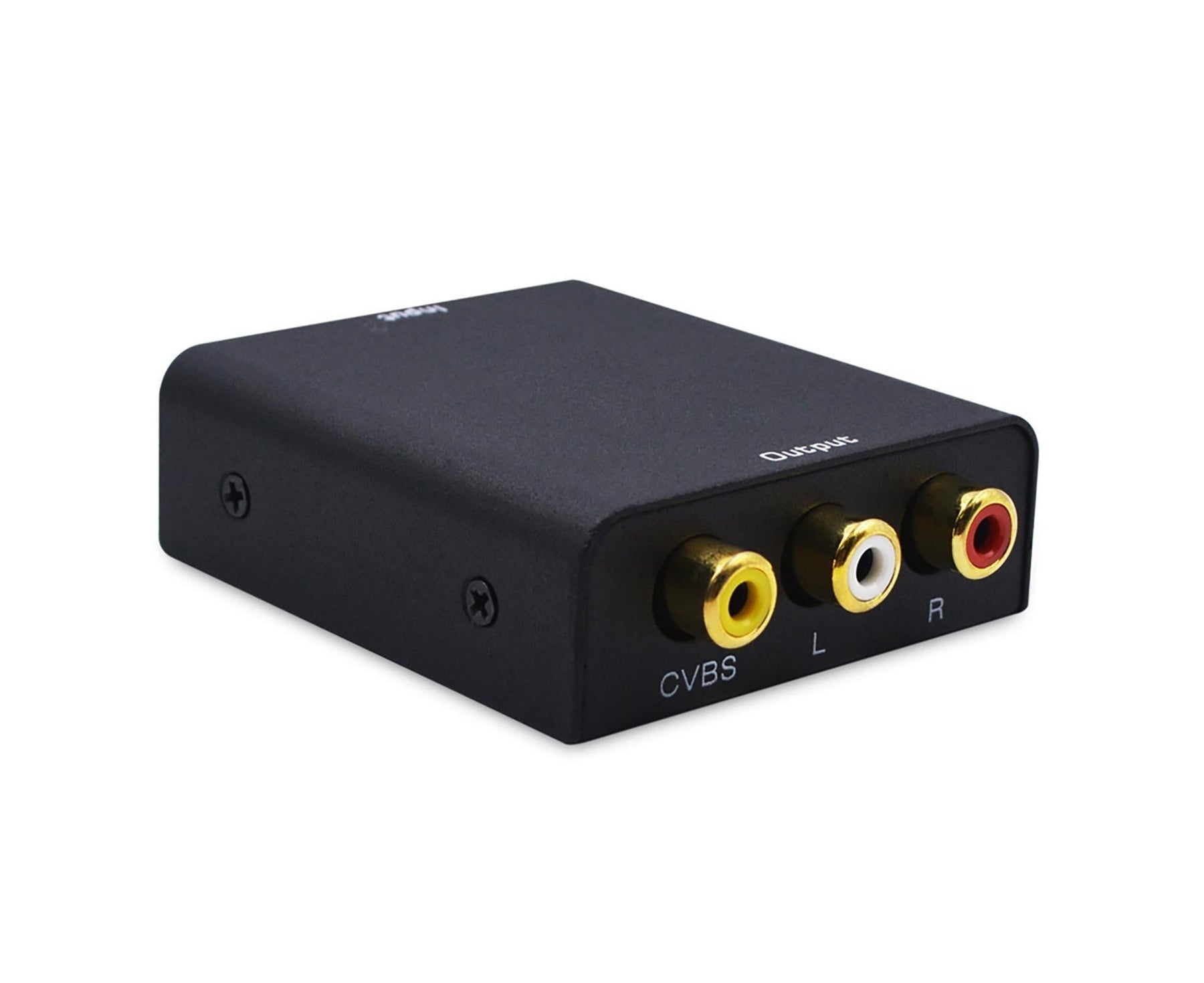

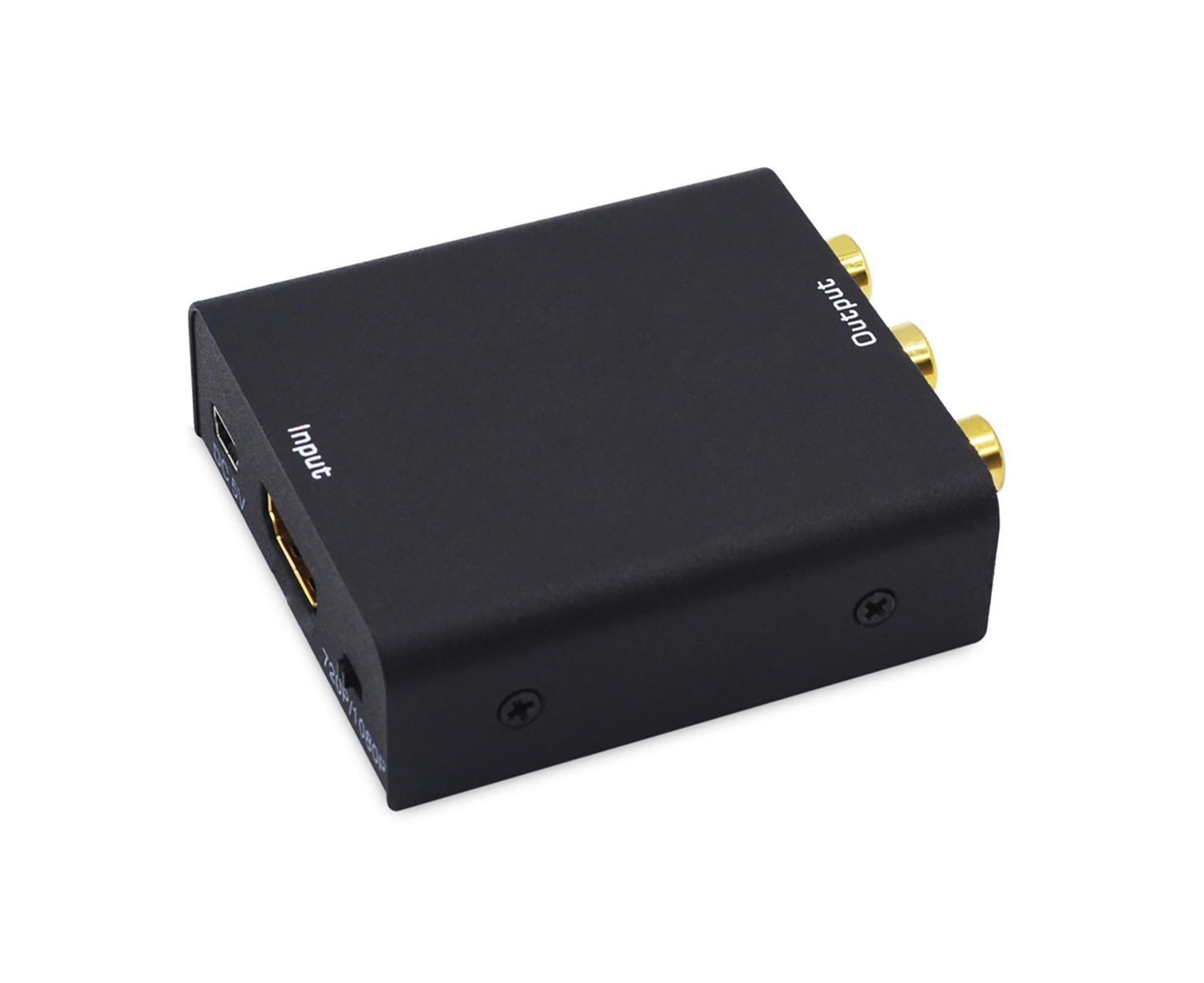

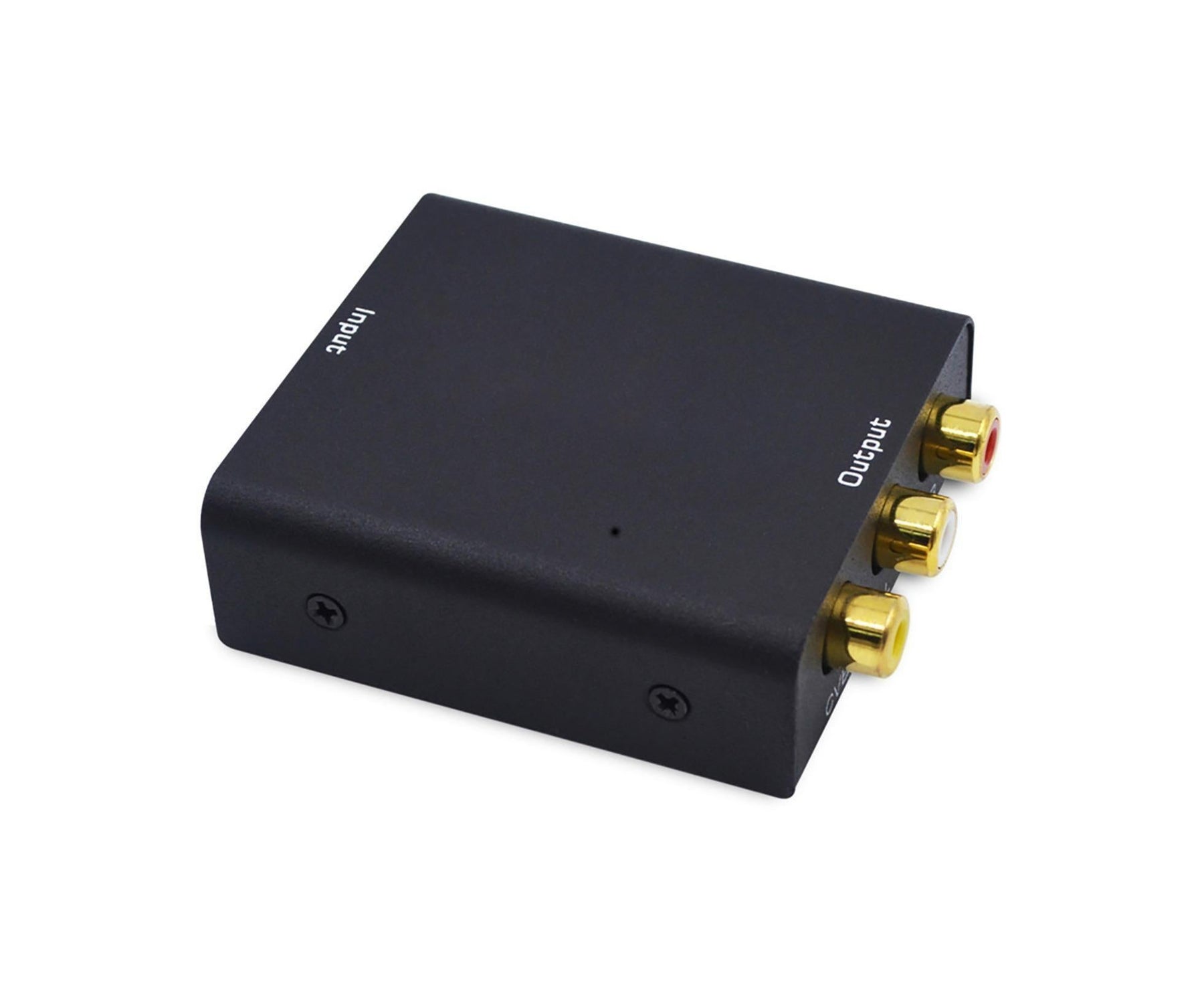

Item Name: Mini HDMI-compatible to AV Converter
Model: AY26V14
HDMI-compatible Version: HDMI-compatible1.4b
HDCP Version: HDCP1.4
HDMI-compatible Input Resolution: Up To 4K/30fs
HDMI-compatible Supports Video Color Format: 24-Bit/Dark 30-Bit/36-Bit
HDMI-compatible Supports Audio Formats.: PCM2.0
Support Audio Sampling Rate: 32 - 192 KHz
HDMI-compatible Maximum Transmission Bandwidth: 300MHz
HDMI-compatible Maximum Transmission Speed: 10.2 Gbps
Input TMDS Signal: 0.5 - 1.5Vp-p(TTL)
Input DDC Signal: 5Vp-p(TTL)
RCA Analog Output (1KHz@0dB): 1V RMS
Signal to Noise Ratio @0dB (CC1R/ARM): 90dB
Distortion Degree: 0.1%
Frequency Response: 20HZ~20KHz
Video Output Format: NTSCPAL
HDMI-compatible Input Cable Length.: 10m AWG26 HDMI-compatible Standard Cable
Maximum Working Current: 420mA
Power Adapter Specifications: AC 100V-240V 50/60HZ, DC 5V/1A
Working Temperature: -10 - +55 Degrees Celsius
Storage Temperature: -20 - +60 Degrees Celsius
Working Humidity: 10 - 90%RH (No Condensation)
Storage Humidity: 5 - 95%RH (No Condensation)
Features: Compact Size, Durable, Plug and Play
Size: 6.2cm x 5.5cm x 2cm/2.44&quot
x 2.17&quot
x 0.79&quot
(Approx.)

Notes:
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.

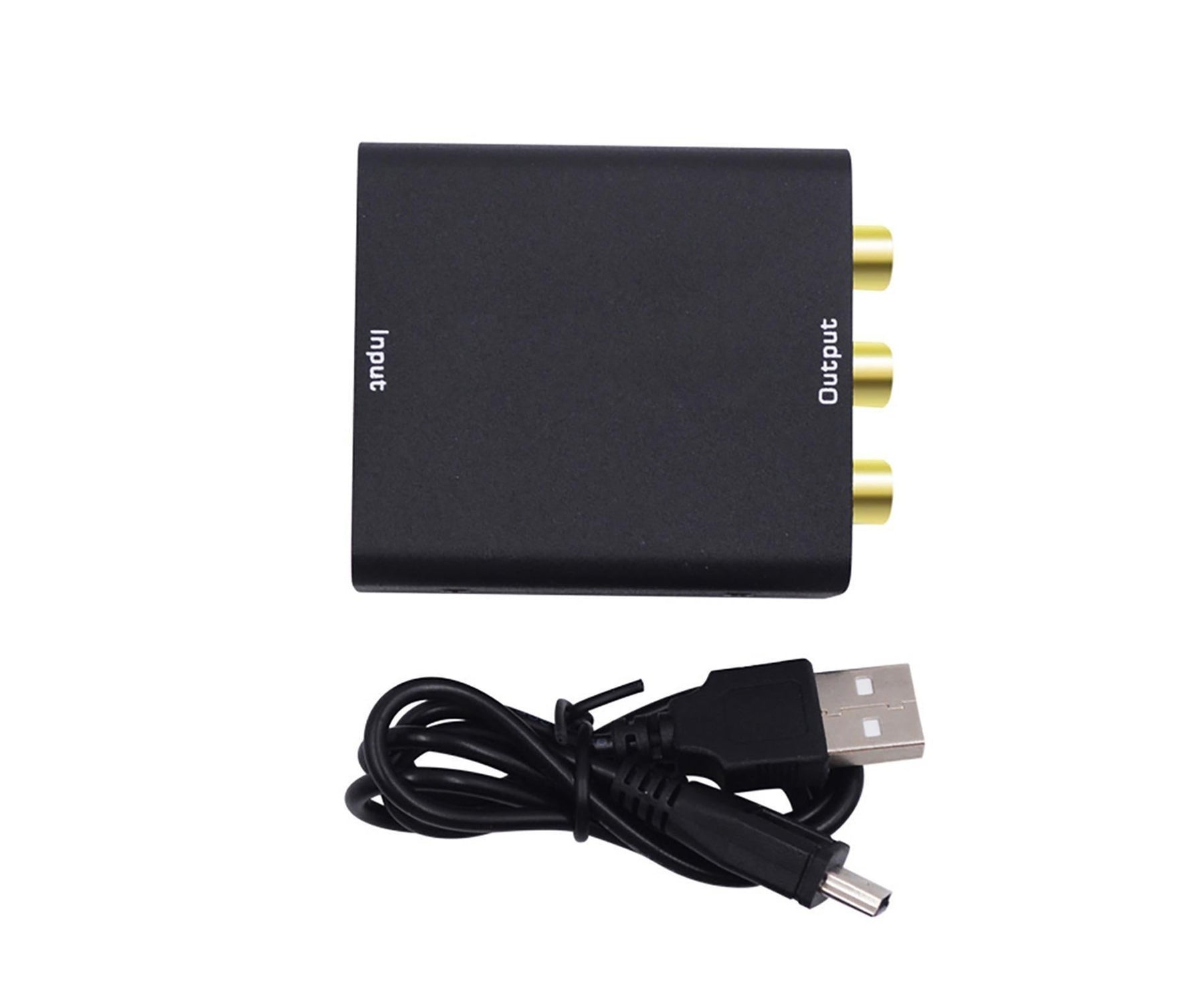

Package Includes:
1 x Host
1 x User Manual
1 x USB Power Cable
