Specifications:

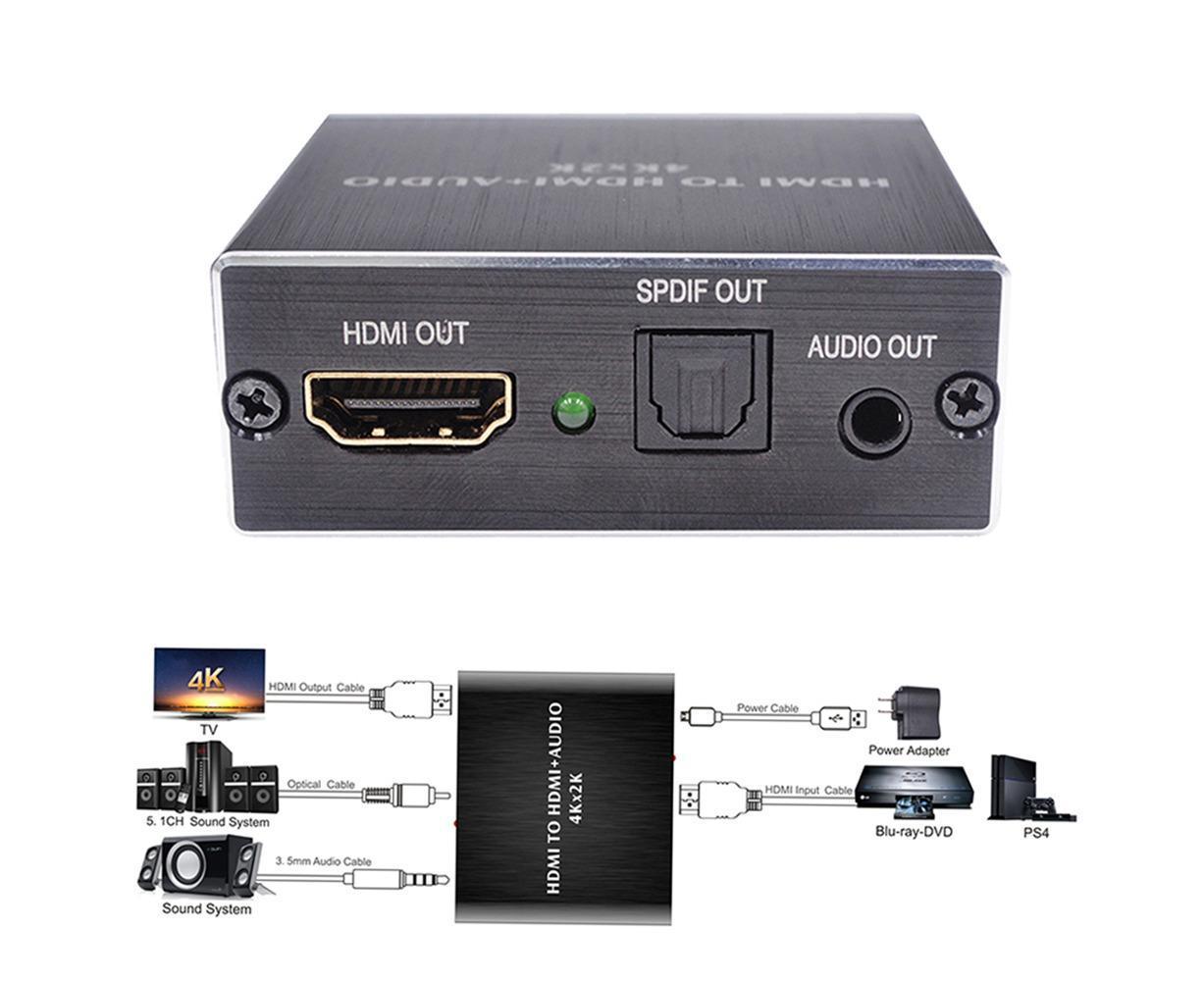

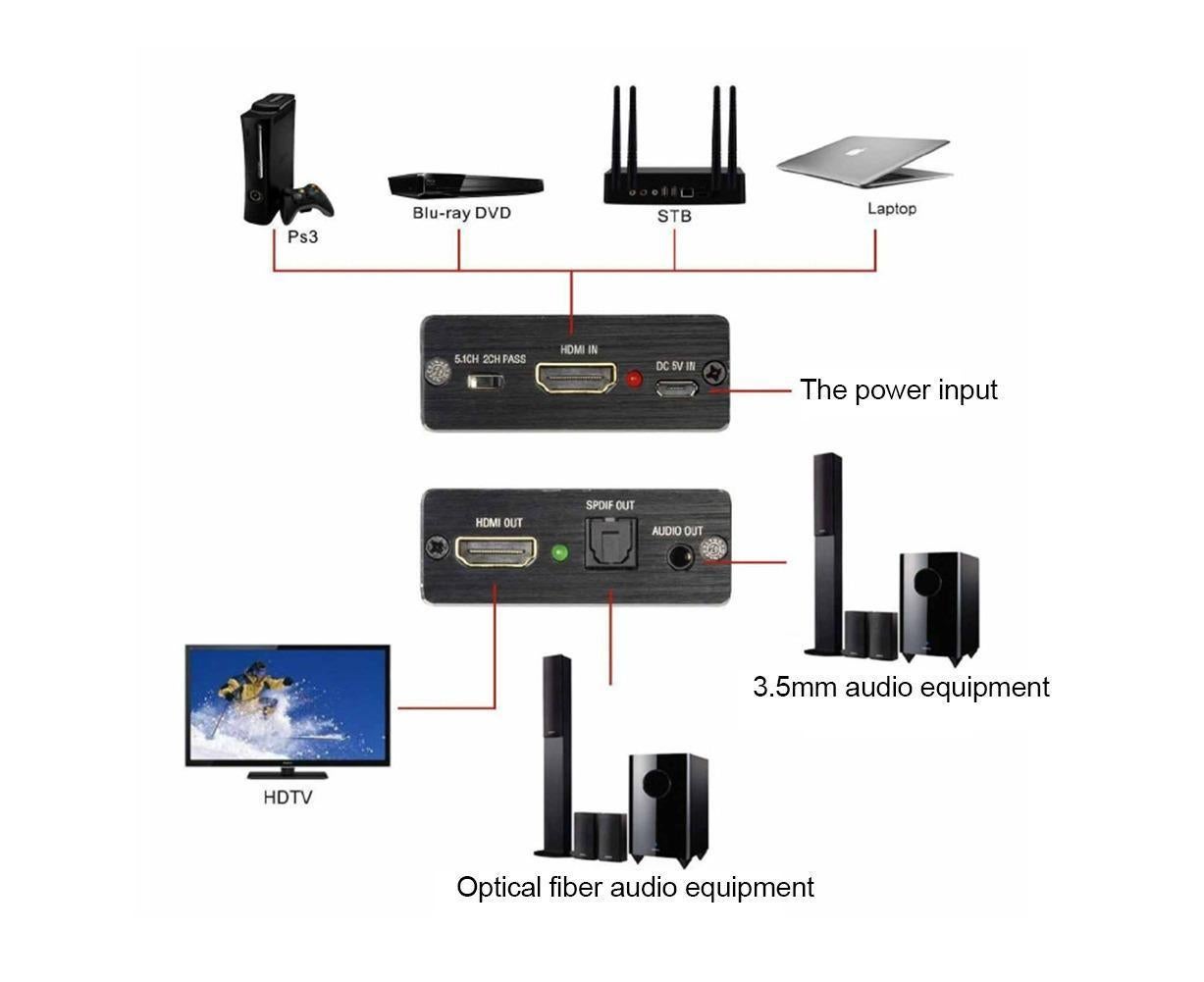

Convert one HDMI-compatible input to one HDMI-compatible output, one audio (SPDIF) output and one 3.5mm analog audio output.
The input resolution up to 3840x2160@30Hz, 4096x2160@30Hz.
HDMI-compatible achieves synchronous separation of audio signals. There are three audio mode options of PASS/2.0CH/5.1CH.
The LED indicator clearly indicates the working status of the extractor.

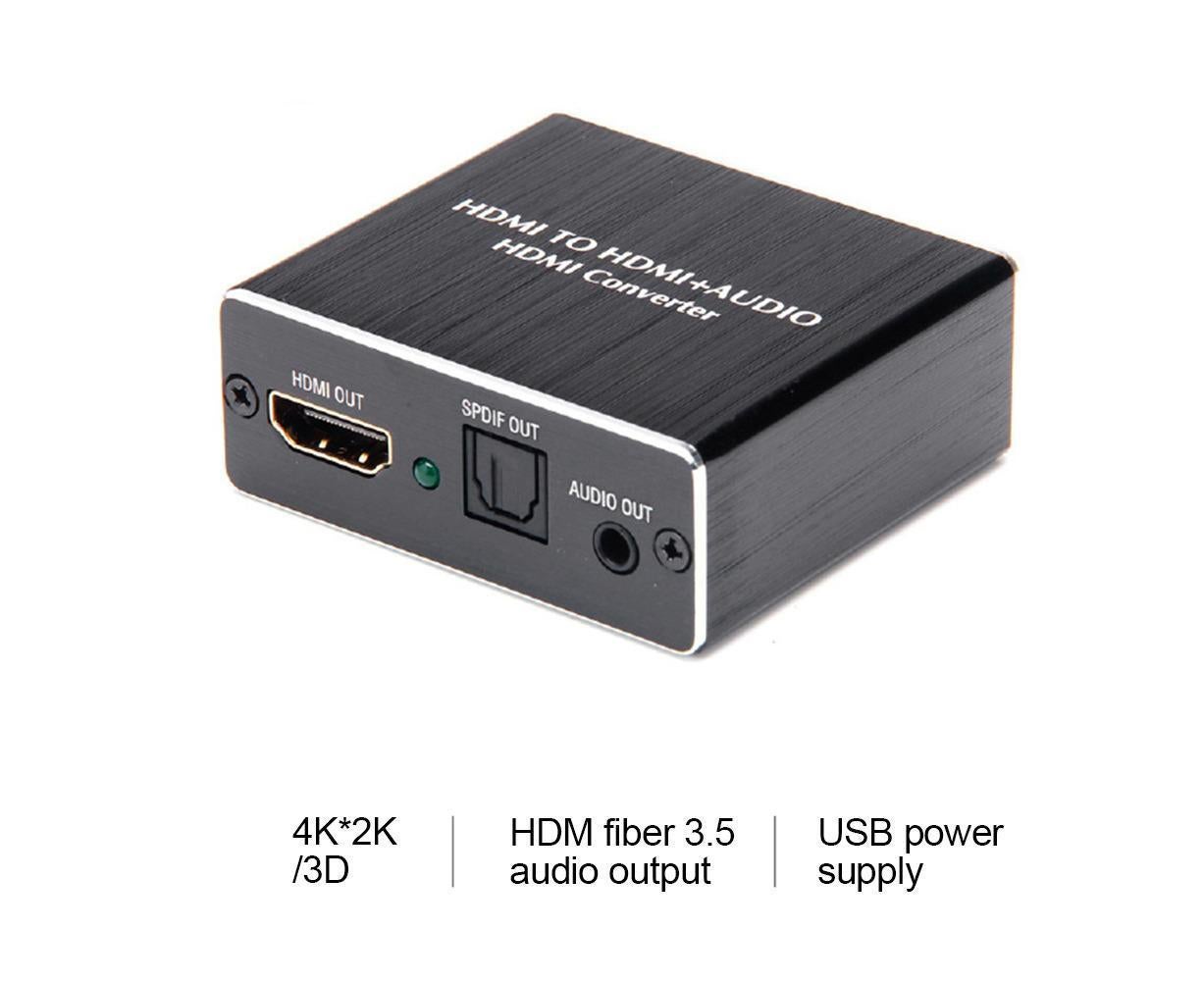

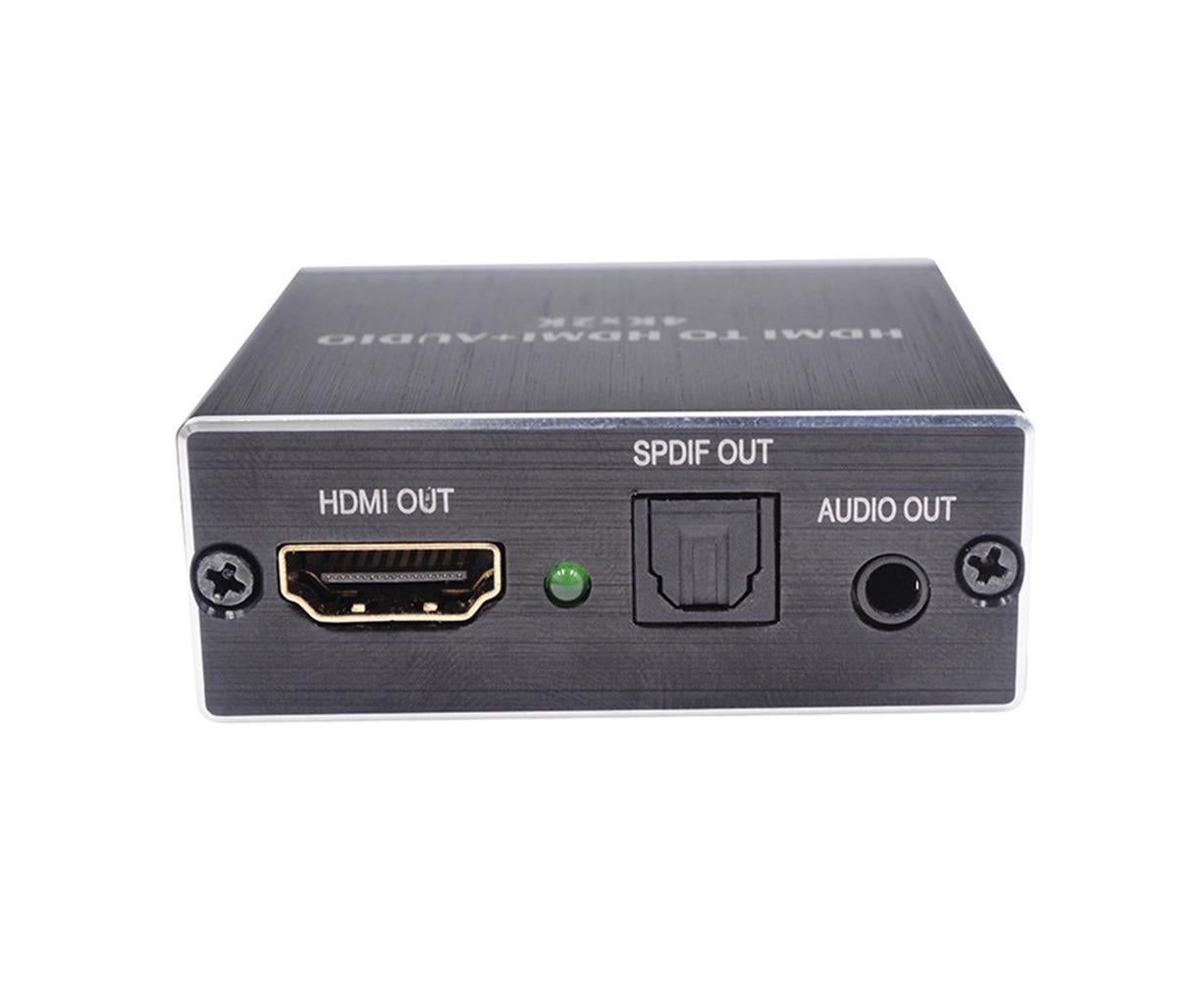

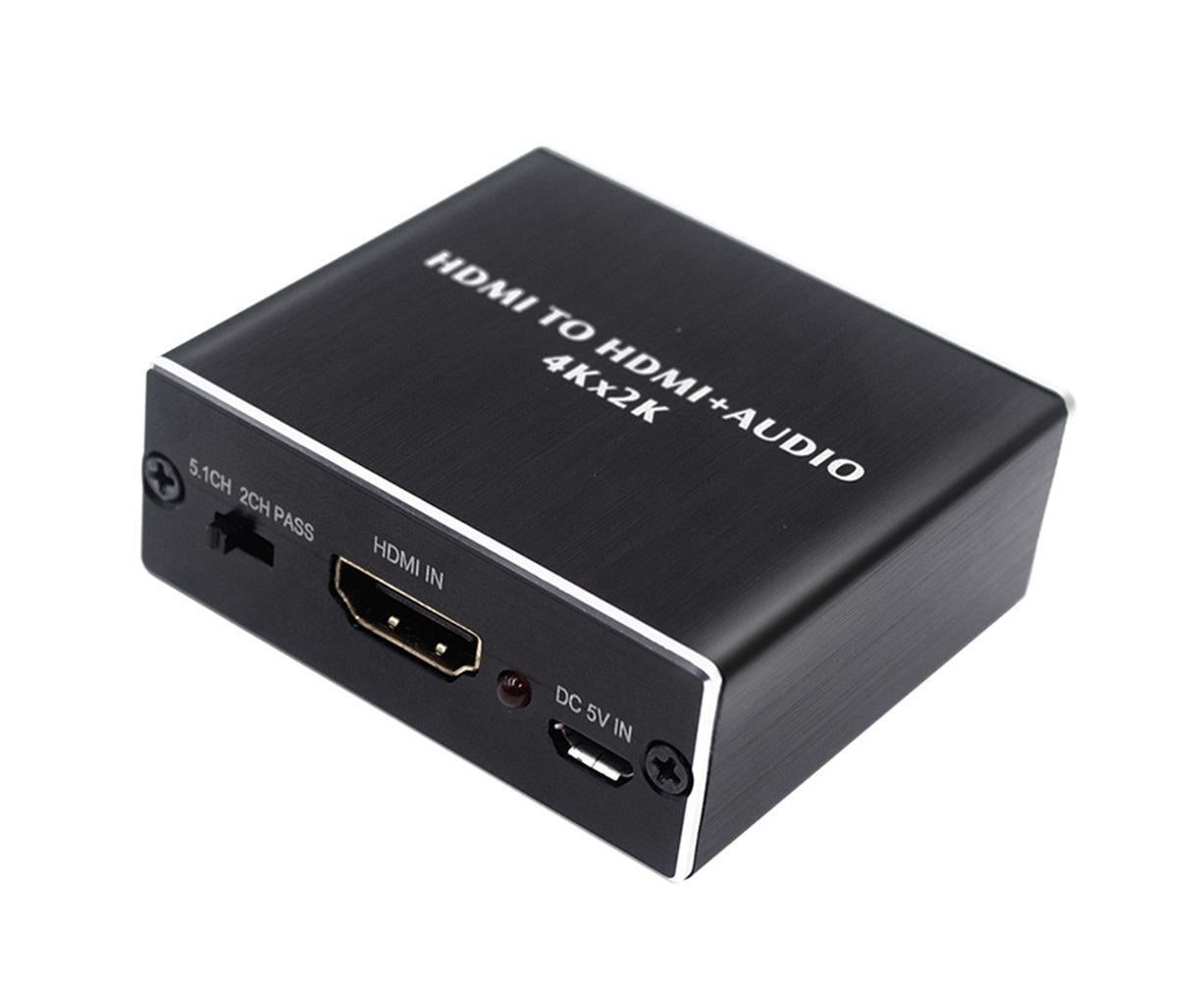

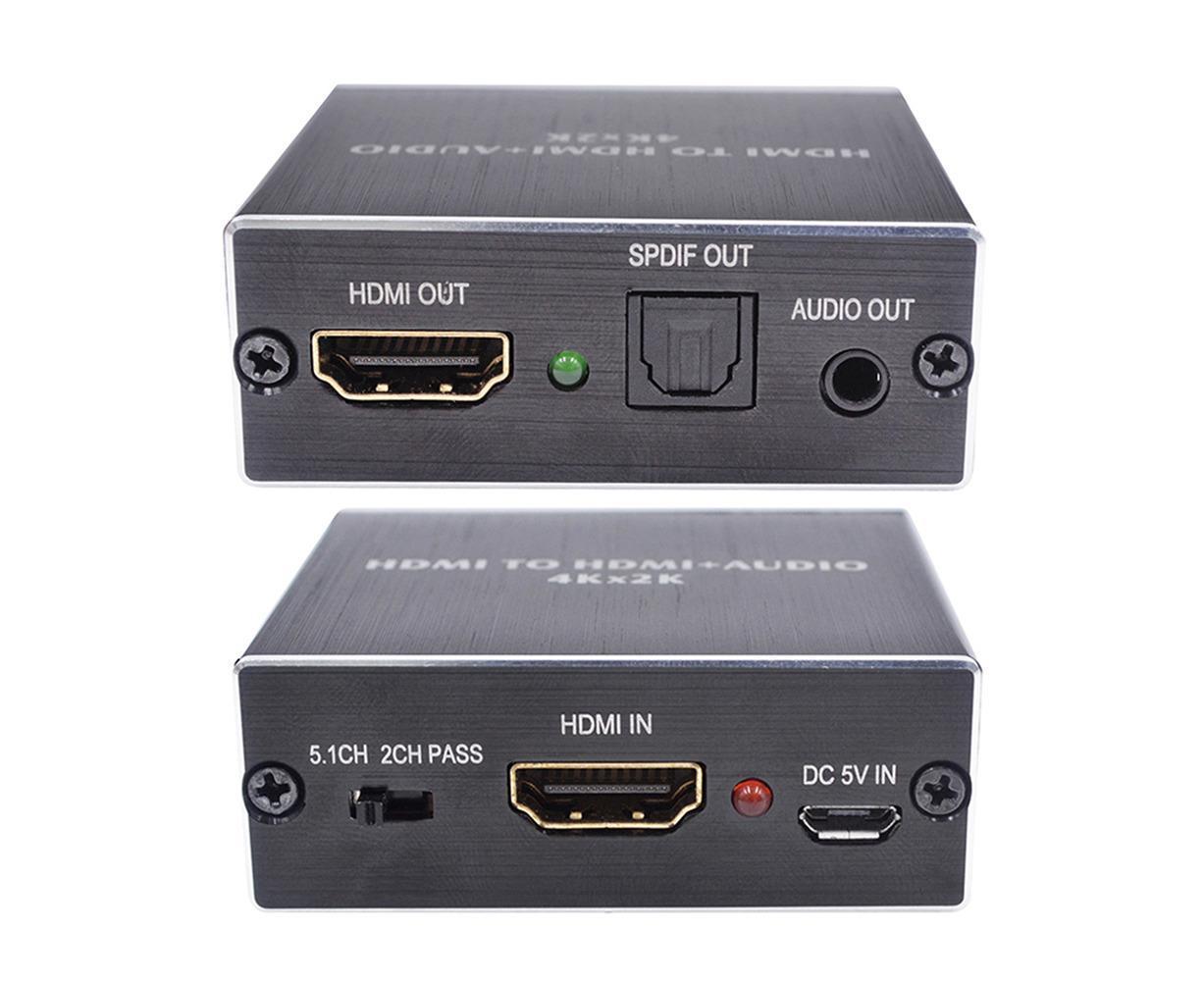

Item Name: HDMI-compatible Audio Splitter
Material: ASB
HDCP Version: HDCP1.4
HDMI-compatible Version: HDMI-compatible1.4b
HDMI-compatible Resolution: 2160p@30Hz, 1080p@50/60Hz, 1080i/720p/1576i/480p/480i
Supported Video Color Format: 24-bit/Dark Color 30-bit, 36-bit
Audio Output: for SPDIF 3.5mm Audio
Max. Bandwidth: 340MHz
Input &amp
Output TMDS Signal: 0.5-1.5V P-P (TTL)
Input &amp
Output DDC Signal: 5V P-P (TTL)
Input Cable Distance: &lt
= 7m AWG26 Standard Cable HDMI-compatible
Output Cable Distance: &lt
= 8m AWG26 Standard Cable HDMI-compatible
Maximum Working Current: 500mA
Working Voltage: DC 5V
Operating Temperature Range: -15 to 55 Degree Celsius
Operating Humidity Range: 5% to 90% RH (Non-condensing)
Features: Portable, Converter, Easy to Use
Size: 5.8cm x 5.3cm x 2.19cm/2.28&quot
x 2.09&quot
x 0.86&quot
(Approx.)

Notes:
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.

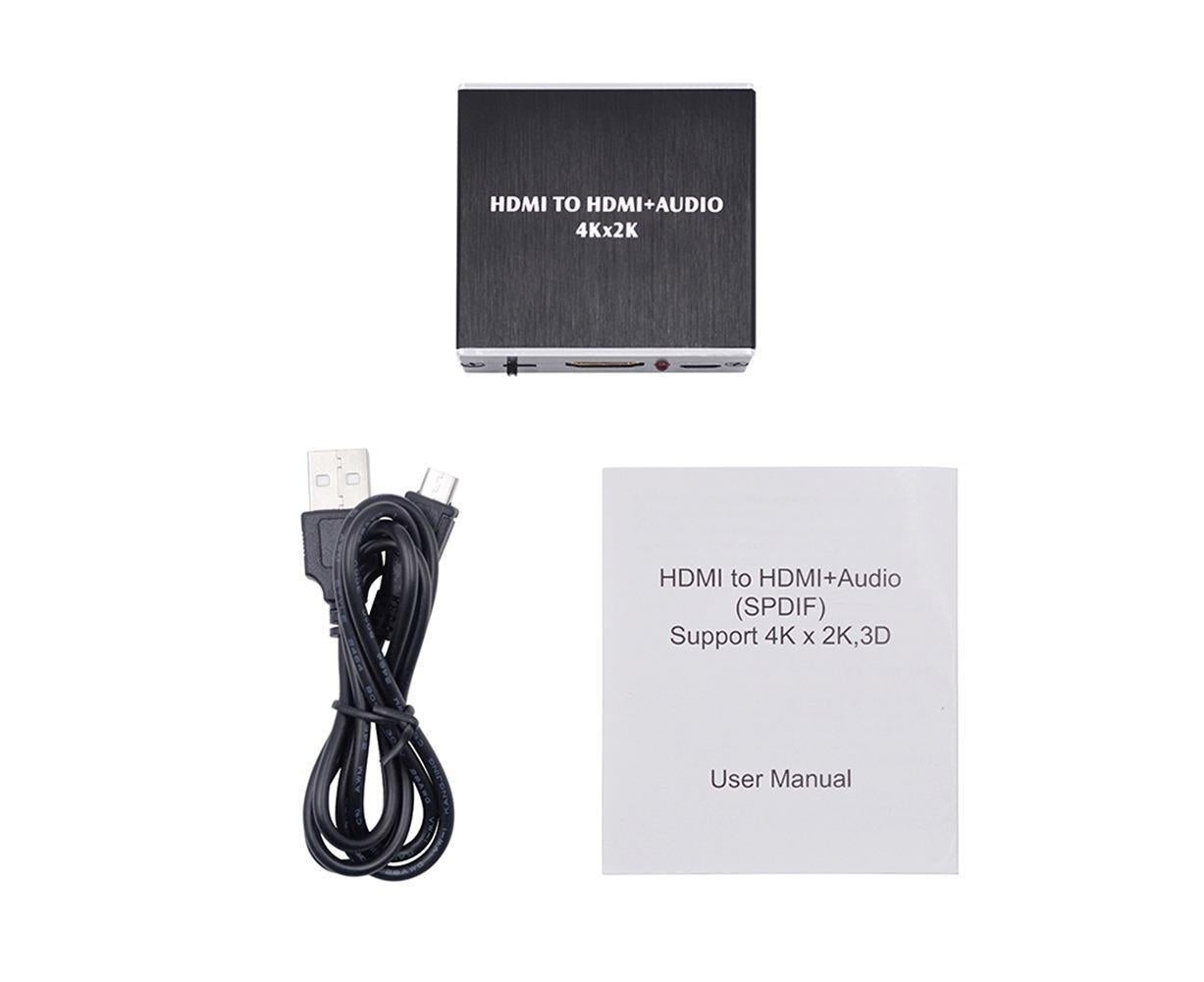

Package Includes:
1 x HDMI-compatible Audio Splitter
1 x USB Power Cable
1 x User Manual
