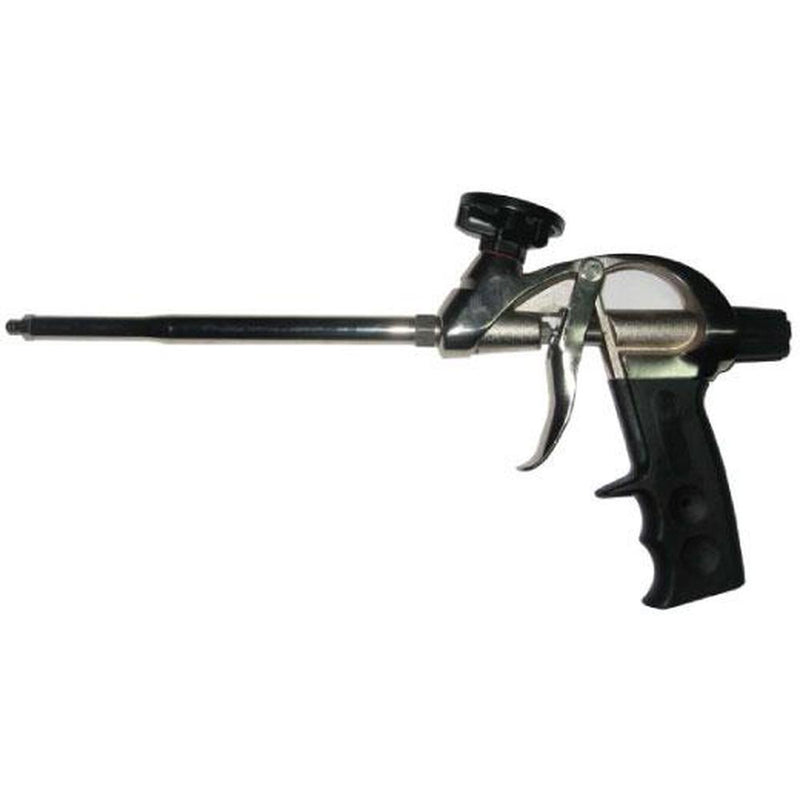

Heavy Metal Polyurethane Foam Applicator, ideal for sealing, filling and insulating small gaps. It is a heavy duty yet lightweight and compact tool, ergonomically designed to use for longer periods. Easy to use and has a sprung trigger to accurately control flow.

Specifications

• Model: BC-1506
• Polyurethane Foam Applicator Gun
• CE certification
• Power Source: Manual
• Gun Tube Material: Steel with Coating
• Gun Body Material: Aluminum Alloy
• Gun Trigger Material: Steel Trigger with Nickel Coated
• Gun Adapter Material: Universal Zinc Alloy Adapter
• Gun Needle Material Stainless Steel Sealing Needle
• Gun Nozzle Material Brass
• Gun Barrel Material: Steel with Nickel Coated
• Gun Barrel Length:19 cm
• Gun Handle Material Environmental PP Handle
• Gun Adapter Finish Teflon Coated
• Size: 750ml & 500ml
• Gun Dimensions: 32.5cm (L)x 15cm(W)
• Tube Length: 18.5cm
• Nozzle Diameter: 2mm
• Gun End Nozzle: Brass
• Gun Colour: Stainless Steel silver and Black

Features

• Heavy Duty
• Nickel Coated
• Lightweight yet strong
• Sprung trigger allows you to accurately control flow
• Fitting the Foam Gun is quick and easy - just screw onto any gun grade canister.
• Using the gun is easy too, simply pull the trigger to release a controlled flow of expanding foam

Package

• Comes packed in a cardboard triangle box.
• 1 x PU Foam Applicator Gun
• 1 x Plastic Tube
• 2 x Plastic Nozzle

How to use PU foam gun

1. Take a can of gun foam and shake vigorously.
2. Screw can on to adapter of gun(not too tight).
3. Release the flow adjustment screw lightly and dispense foam immediately to fill the entire gun with foam.
4. The foam gun i snow ready to use.
5. Foam output can be controlled with flow adjustment screw.

After use of the foam gun

1. Leave gun filled with foam after use.Always keep a filled can of gun foam on the gun.
2. Tighten the flow adjustment screw completely.Do not empty the gun.Gun must always be filled with foam,otherwise foam is cured due to the humidity in the air.
3. Put can away in a vertical position(gun upwards).

Use foam gun again

1. Shake the can vigorously(keep hold of the gun).
2. Remove cured foam at the tip of the nozzle carefully with a small,sharp knife.
3. Release the flow adjustment screw lightly and dispense foam immediately until the flow of foam is correct.
4. The gun is now ready to use.
5. Foam output can be controlled with trigger of the gun.

Replacing of the can gun foam

1. Check if the can is empty by dispensing foam in a dust-bin until no more foam is released.
2. Take a new can of gun foam.Shake vigorously.
3. Unscrew the empty can(keep valve opening away from you),remove released foam from adapter and replace the empty can immediately by a new one.
4. Dispense foam immediately to fill the extension tube.

Cleaning of the foam gun at times of interruption

1. Unscrew the can of gun foam (keep valve opening away from you).
2. Take a can gun cleaner and screw the can on the gun.
3. Pull the trigger again to refill the gun with cleaner.
4. Cleaner has to remain in the gun for about 5 minutes.
5. Pull the trigger again to refill the gun with cleaner.
6. Unscrew the can gun cleaner.
7. Screw the can gun foam onto the gun.
8. Pull trigger of the gun again until foam is released and cleaner completely removed.
9. The gun is now ready to use.
