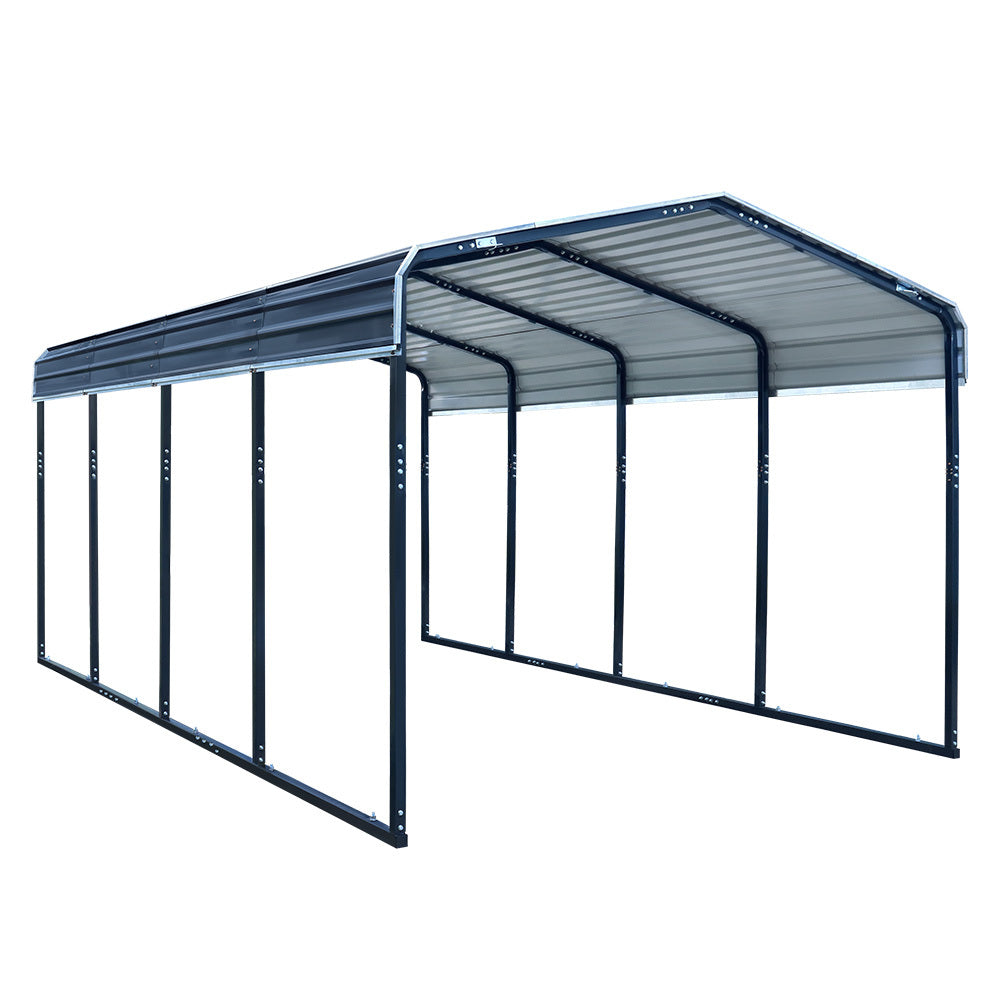

This heavy-duty Shade Shield Carport is an ideal solution to safeguard your vehicles and equipment. With a generous size of 3.3m in width, 6m in length and 2.9m in height, there is ample space for residential, construction and agricultural applications, such as vehicles, marinecraft, caravans, trailers, building and farm equipment and materials.

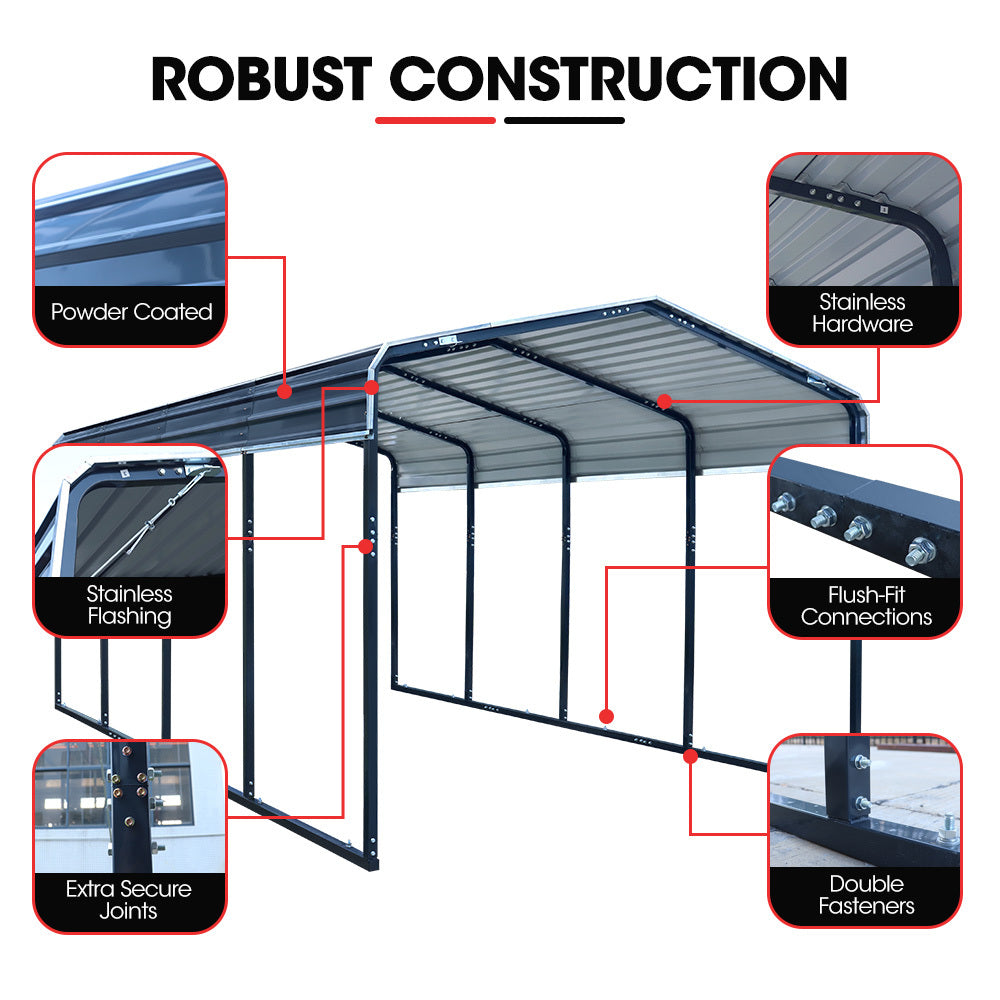

The gable style roof not only enhances its visual appeal, but also ensures efficient water drainage. The structure’s robust construction, free from crossbeams, offers a clear, unobstructed area for your assets. Fabricated from premium steel, galvanised and powder-coated, it guarantees superior durability and resistance against adverse weather conditions.

This shade shed is designed with resilience and ease of assembly at its core, featuring an innovative male/female tube connection system that not only simplifies the construction process but also ensures a stable and durable structure. This versatile design allows for installation on various types of terrain, including concrete and softer ground, offering flexibility in choosing the installation location.

To enhance its durability and provide additional wind resistance, the carport includes steel cables. These steel cables are engineered to offer extra stability, making this Shade Shield Carport a reliable shelter capable of withstanding the harsh Australian environment. Its dimensions and design features are thoughtfully considered to offer effective protection against the elements.

Note:
Please check for local council approval and assess suitability for your local environment, especially regarding wind conditions, before installation.
Cables are recommended for installation on soft surfaces, or high wind areas.

• Versatile utility for cars, trailers, building equipment and farm materials
• Suitable for residential, construction and agricultural applications

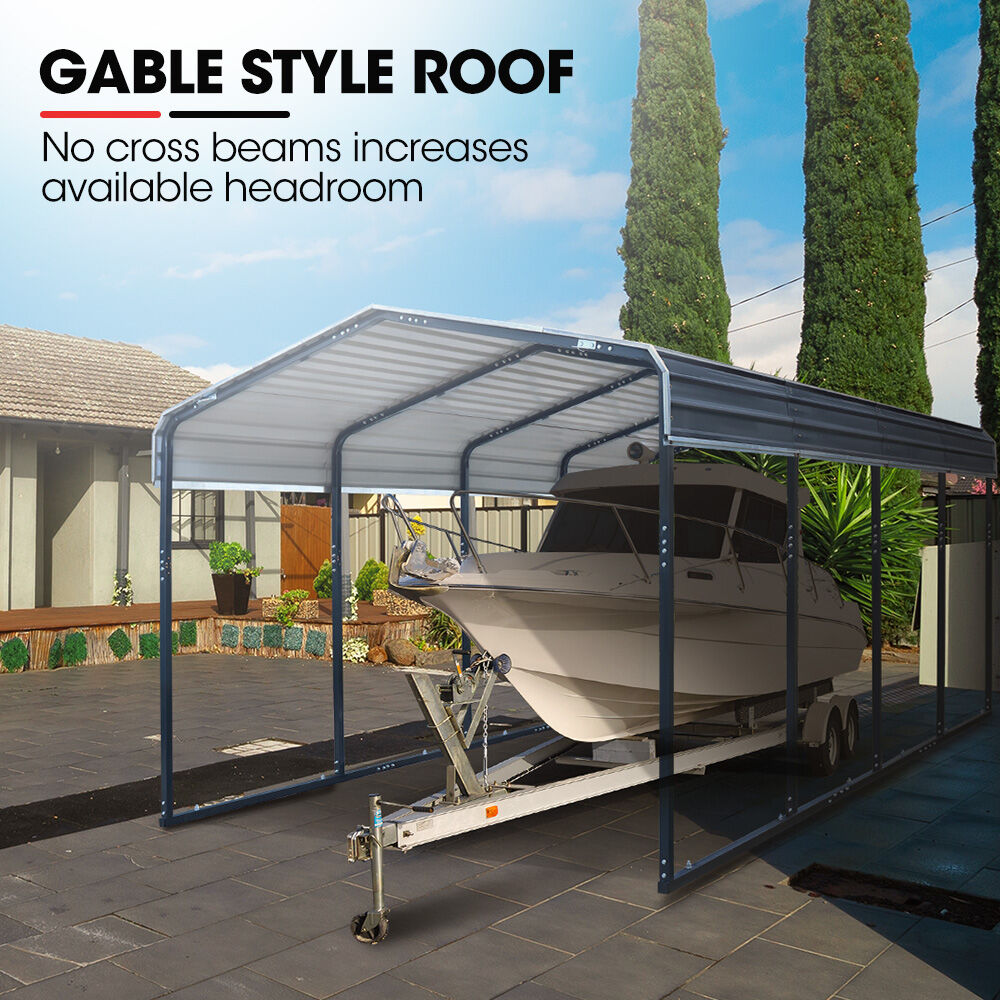

• Gable style roof design for aesthetic and functional superiority
• Crossbeam-free robust construction offers more space for storage

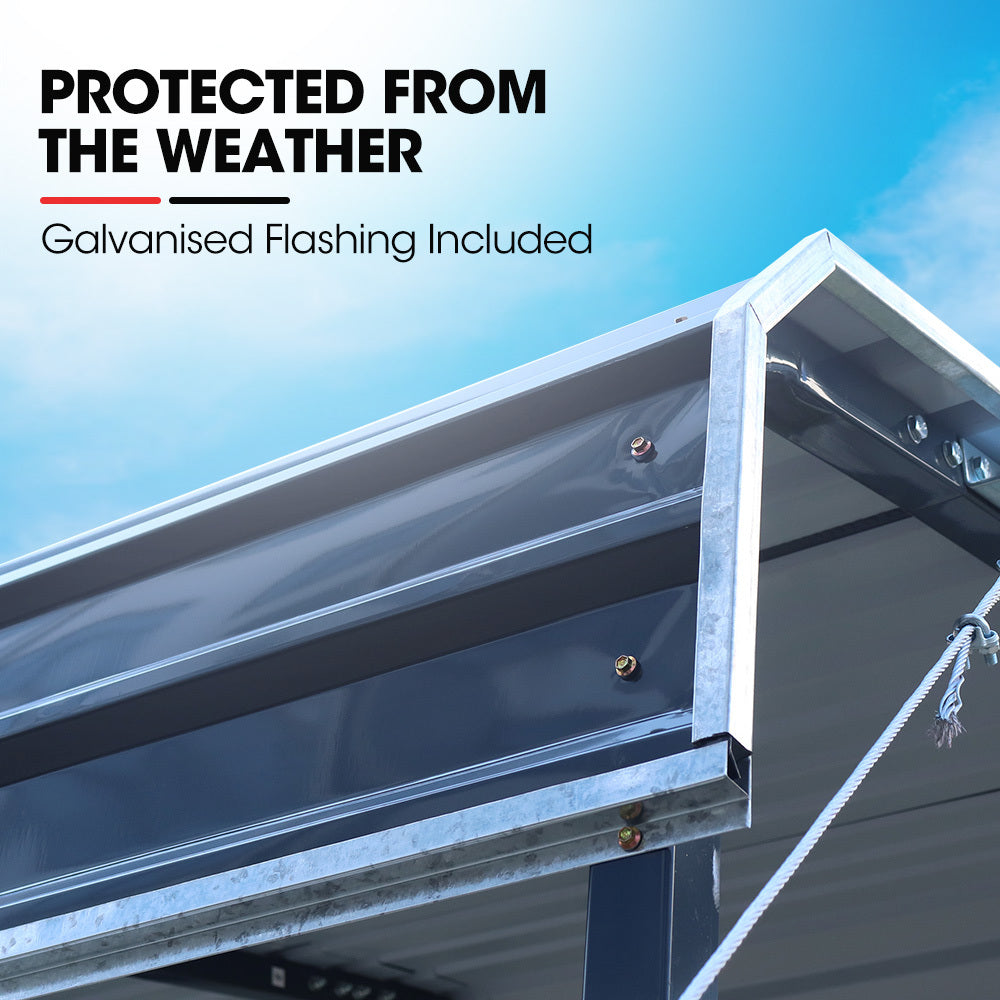

• Constructed with high-quality, galvanised and powder-coated tube steel
• Features easy-to-assemble male/female tube connections and numbered parts

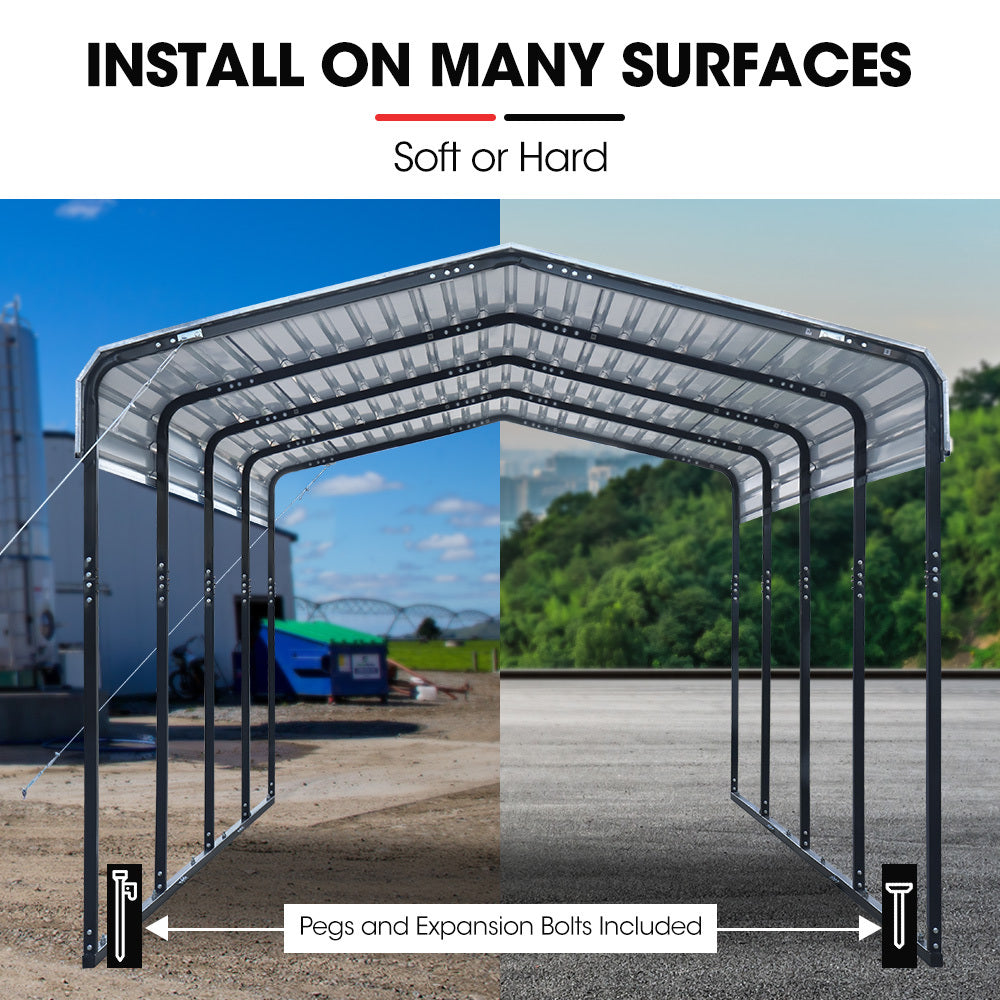

• Flexible installation on concrete or soft surfaces

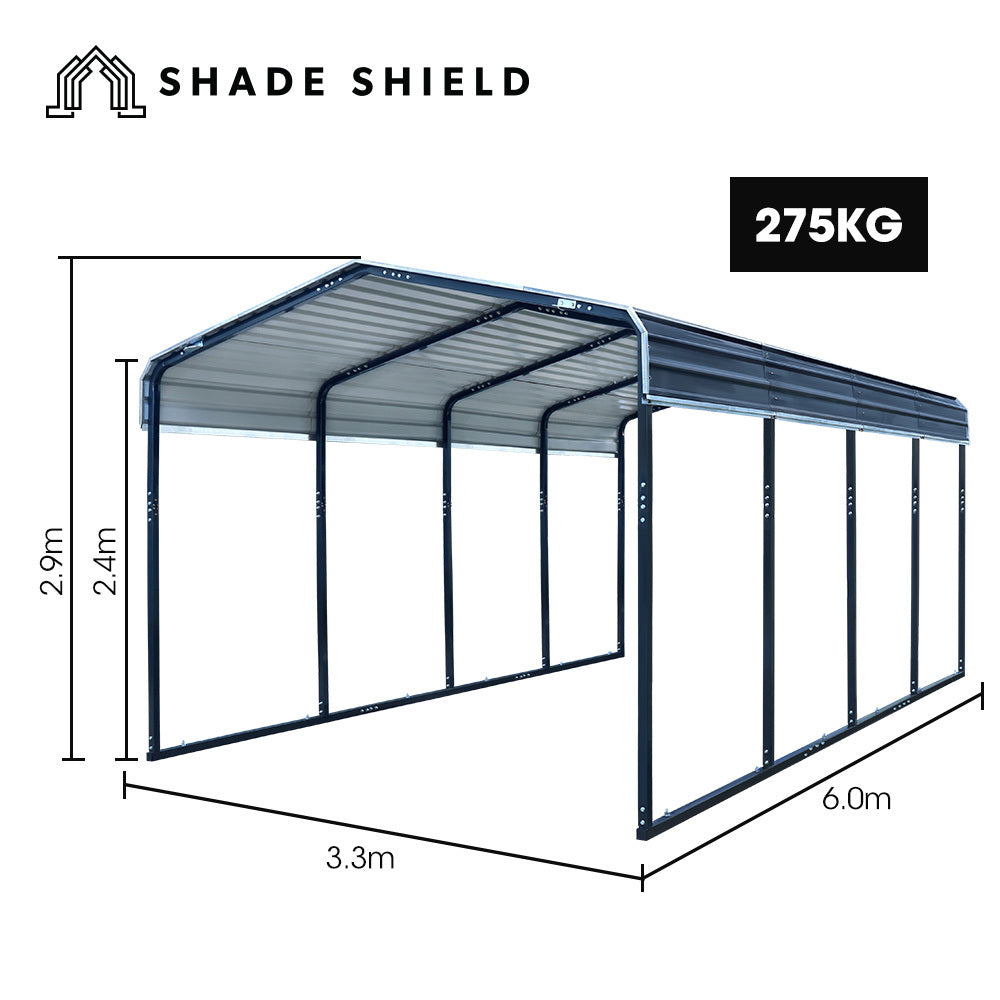

• Sizeable dimensions of 3.3 x 6.0 x 2.9m (W x L x H) cater to a broad range of needs
• Engineered for durability and all-weather resistance
• Provides a secure, sheltered space for valuable assets against the elements

SPECIFICATION

• Brand: Shade Shield
• Material: Galvanised steel
• Powder Coated: Yes
• Colour: Dark Grey
• Tube Size: 50 x 50 x 1.8mm
• Roof Sheet Thickness: 0.35mm
• Heat Resistant: Yes
• Waterproof: Yes
• Wind Rating: up to 120km/h
• Snow Rating: up to 35 PSF

IN THE BOX

• 5 x Peak arch tubes
• 10 x Middle rafter tubes
• 10 x Shoulder tubes
• 10 x Sidewall tubes
• 34 x Short casings
• 4 x Side edge crossbars (front and rear trusses)
• 4 x Side edge crossbars (middle truss)
• 4 x Foot tubes (front and rear)
• 2 x Foot tubes (middle)
• 10 x Metal sheets (front and rear trusses)
• 10 x Metal sheets (middle truss)
• 2 x Edge protectors (A)
• 4 x Edge protectors (B)
• 4 x Edge protectors (C)
• 8 x Edge buckles
• 4 x Water plugs
• 4 x Steel cable mounting plates
• 4 x Anchor hooks (Installed in concrete)
• 4 x Ground pegs (Installed on soil foundation)
• 4 x Steel cables
• 12 x Expansion bolts (Installed in concrete)
• 12 x Ground pegs (Installed on soil foundation)
• 2 x Waterproof silicone sealants
• 1 x Caulking gun
• 156 x Hex bolts
• 190 x Self tapping screws
• 50 x Blind rivets
• 4 x Corner protectors
• 2 x Sleeves


SIZE WEIGHT

• Product Dimensions (W x L x H): 3.3 x 6 x 2.9m
• Product Weight: 275kg
• Crate Dimensions (W x L x H): 97 x 222 x 31cm
• Crate Weight: 327kg
