Simplecom CA152 USB to 3.5mm Audio and Microphone Sound Card Adapter for TRS or TRRS Headset with Mic

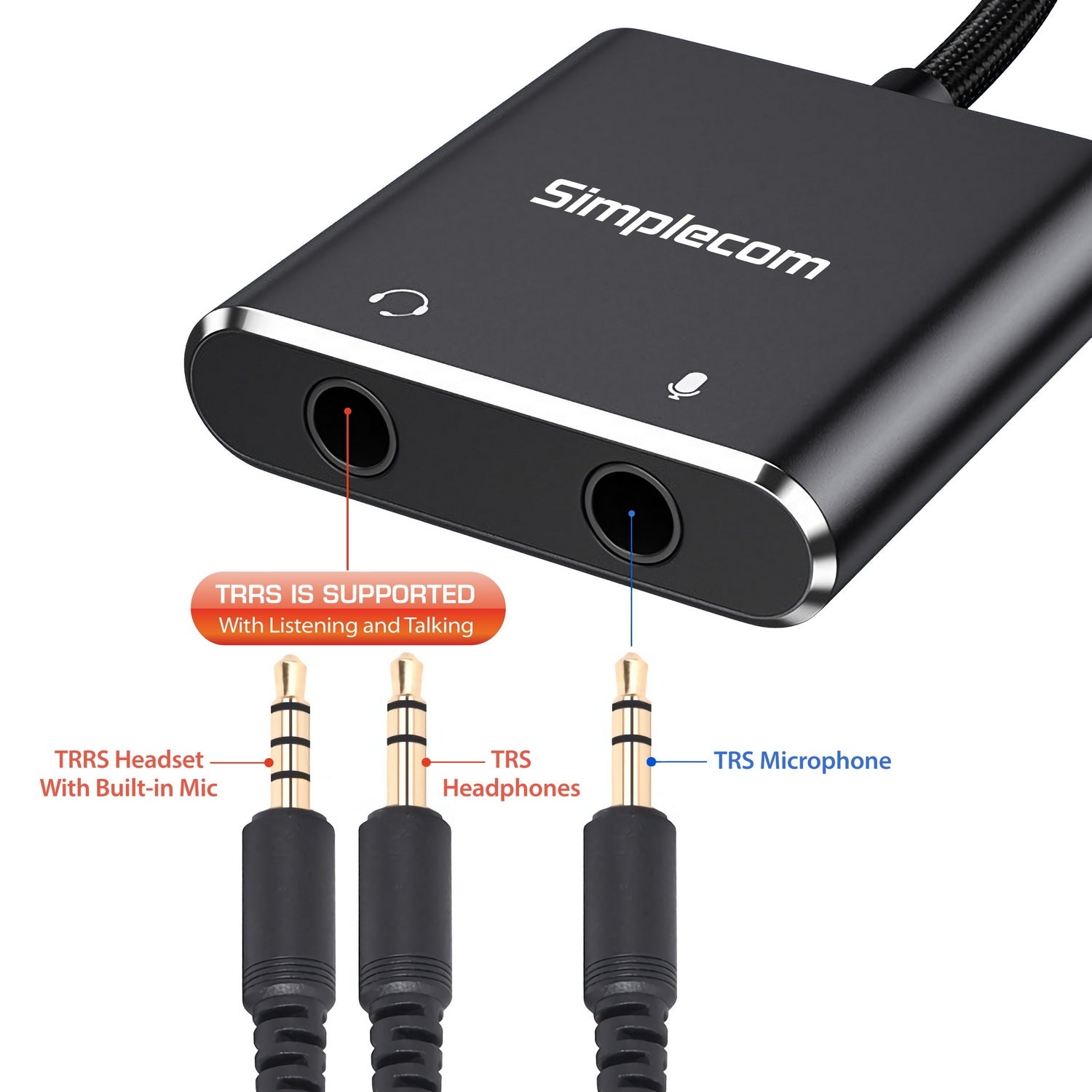

CA152 is a USB to 3.5mm audio and microphone adapter that turns your 3.5mm headphones into USB interface. The headphone jack is compatible with both TRS (three-conductor) plug headset and TRRS (four-conductor) plug headset with mic. Microphone jack is compatible TRS (three-conductor) plug microphone.

Not only for PC headphones with separate audio and microphone plugs, it's also compatible with single TRRS plug mobile headset with both listening and talking support.

With built-in smart conversion chip, the headphones jack is able to automatically detect TRS or TRRS headset, the integrated mic will be enabled when a TRRS headset is plugged in, so you can also listen and talk when using a single cable headset with mic.

Wide support of operating systems, compatible with Windows PC, MacOS, Linux, Chrome OS and more.

Features

• USB to 3.5mm audio and microphone dual-port adapter
• Headphone jack supports both listening and talking for TRRS (four-conductor) headset with mic
• Microphone jack supports TRS (three-conductor) plug microphone
• Plug and play, no driver software required
• Premium aluminum casing for durable surface and stylish finishing
• Durable and long-lasting braided cable
• Compact and portable design, easy to carry
• Widely supported operating systems for PC, Mac, Linux and more

Specifications

• Model: CA152
• USB Interface: USB 2.0
• Headphones Jack: 3.5mm TRRS Female (four-conductor) with mic support
• Microphone Jack: 3.5mm TRS Female (three-conductor)
• Audio output: 24bit / 96Khz max (Stereo)
• Material: Braided Cable + Aluminum Shell
• Cable Length: 15cm (without connectors)
• Dimension: 3.4cm x 3.3cm x 0.8cm
• Weight: 18g
• Operating system Support: Windows XP and above, MacOS 8.6 and above, Linux, Chrome OS, PS4, PS5, Switch

Important Notes:

• The microphone port on the adapter will be disabled when a TRRS headset with integrated microphone is plugged in, and the microphone on the TRRS headset is activated.
• Does not work with PS3, TV, Amplifier, Car, Xbox One. (The USB port on those devices do not carry audio signal)
• Support CTIA standard TRRS headset only, legacy OMTP standard headset is not supported
• No in-line control when using mobile headset, doesn't support Pause, Play, Volume Up and Volume Down controls
