The Simplecom High Speed HDMI with Ethernet Cable is perfect for home theatre or desktop audio video applications requiring high speed HDMI features and video resolutions up to 4k (2160p). The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection for accessing interactive online content or updating device firmware.

Features

4K@50/60, (2160p), which is 4 times the clarity of 1080p/60 video resolution

Supports HDMI features including 4k resolution and 3D video, Deep Color and x.v. Color

Dolby True HD, DTS-HD Master Audio and up to 32 audio channels for a multi-dimensional immersive audio experience

Up to 1536kHz audio sample frequency for the highest audio fidelity

Simultaneous delivery of dual video streams to multiple users on the same screen

Simultaneous delivery of multi-stream audio to multiple users (up to 4)

Support for the wide angle theatrical 21:9 video aspect ratio

Dynamic synchronization of video and audio streams

CEC extensions for control of consumer electronics devices through a single control point

Gold plated connectors

Specifications

Nominal Velocity of Propagation - 10.2Gbps

DC Resistance - 300V

Dielectric Strength - AC 500V/minute

Insulation Resistance - 100Ω

Nominal Attenuation - 300kHz-825MHz - <5dB, 825MHz-2.475GHz - <5dB, 2.475GHz-4.125GHz - <12dB, 4.125GHz-5.1GHz - <20dB

HDMI (3D, Deep Color, x.v.Color, Dolby True HD, and DTS-HD Master Audio), Full 1080p resolution

4K@50/60, (2160p), which is 4 times the clarity of 1080p/60 video resolution

3D video, Deep Color and x.v. Color

Dolby True HD, DTS-HD Master Audio and up to 32 audio channels for a multi-dimensional immersive audio experience

Up to 1536kHz audio sample frequency for the highest audio fidelity

High bandwidth (340 MHz/10.2 Gbps) for high speed data transfer

HDMI-CEC system control compatibility

HDMI Ethernet Channel (when used with HDMI Ethernet channel supported source and sync equipment).

Physical Characteristics

Length - 1 Meter

Drain Wire - 30AWG (07/0.10), Tinned Copper

Foil Shield - Aluminum Foil, 100% Coverage

Braided Shield - 16/4/0.12, Al/Mg

Jacket - PVC, Black, O.D. - 6.0 ± 0.2mm

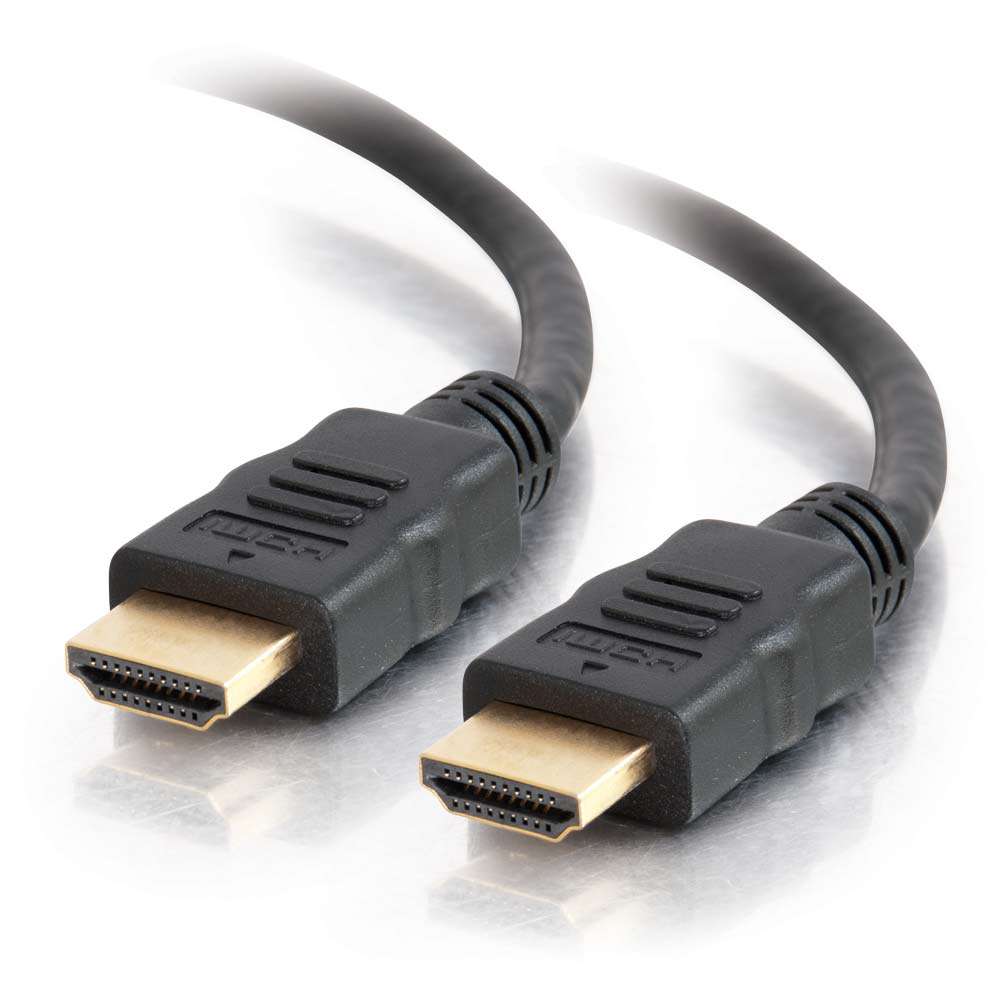

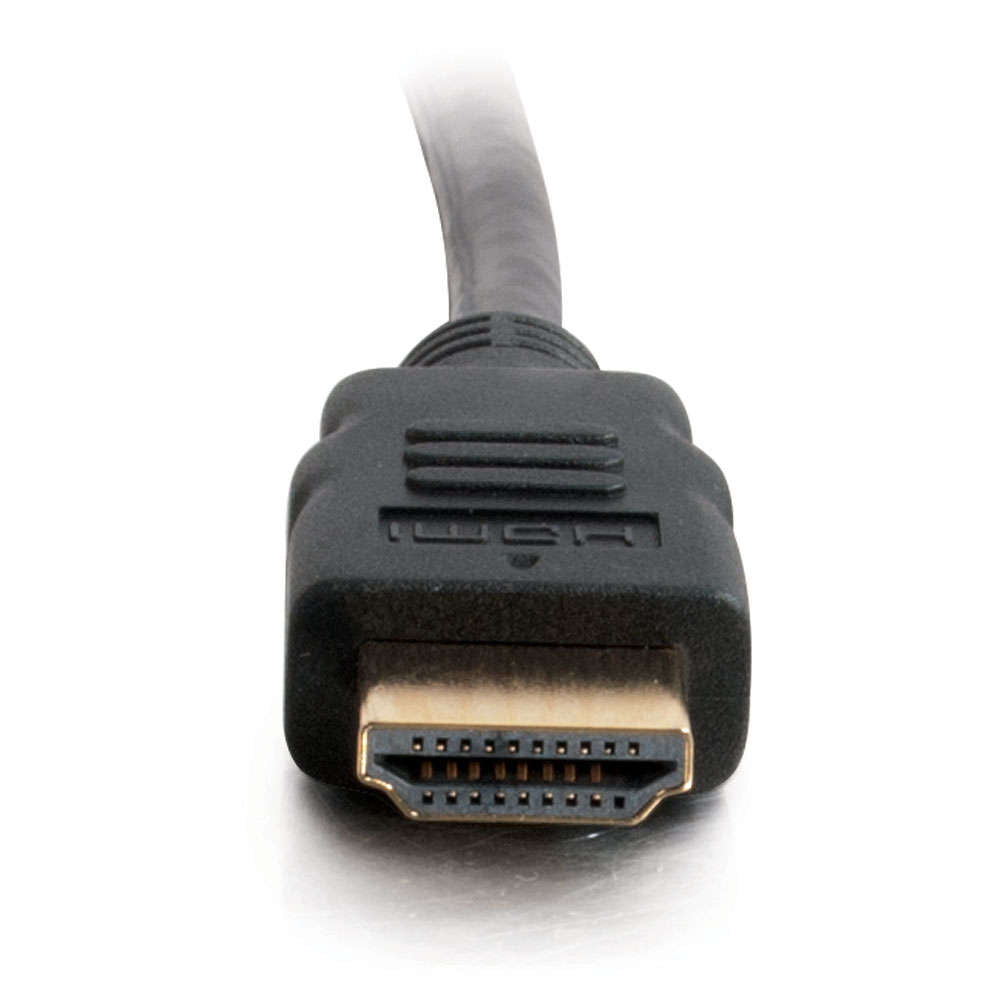

Connector Type - HDMI - Type A

Pin Construction - Phosphor Copper

Plating - 1µm Gold

Voltage Rating - 30V

Minimum Bend Radius - 60°

Temperature Rating - 80°C

Operating Temperature Range - -20° - 80°C

Storage Temperature Range - -25° - 85°C

Approvals - RoHS Compliant

Package Type – Polybag

Package contents:

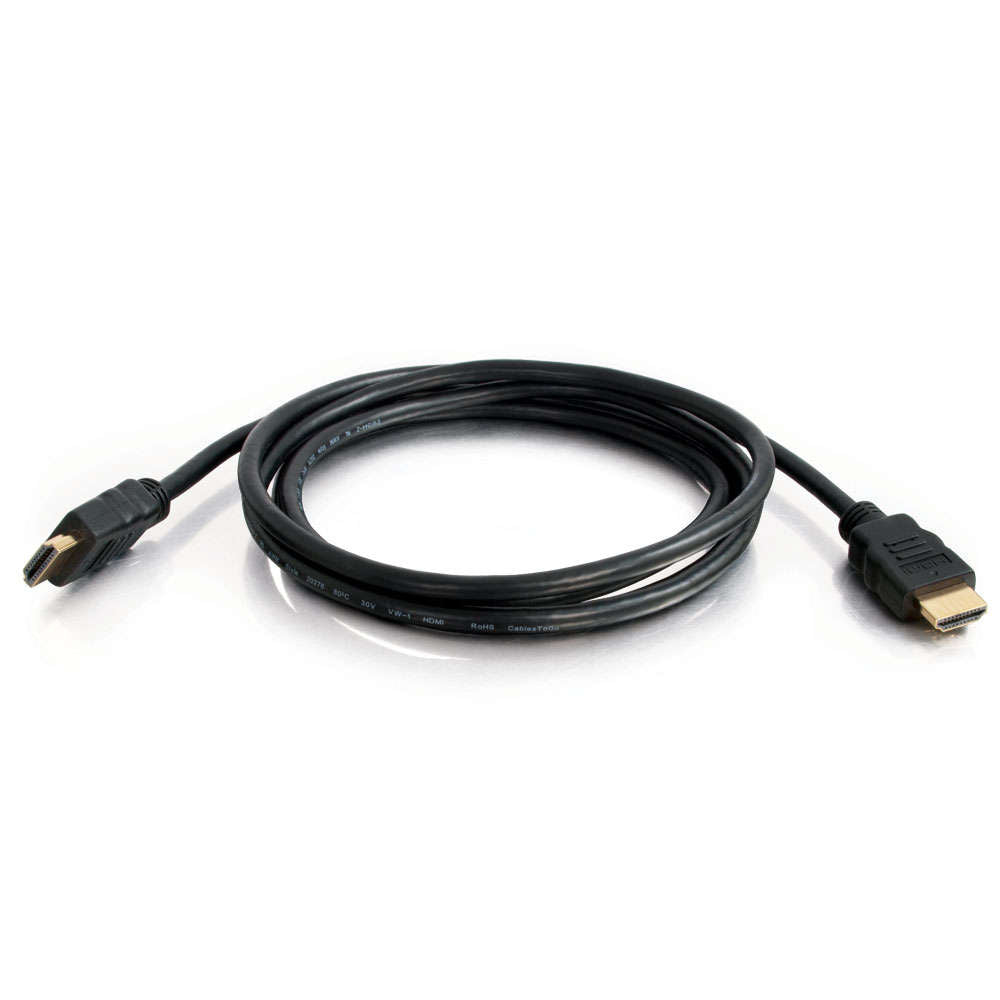

1x Simplecom CAH410 1M High Speed HDMI Cable with Ethernet (3.3ft)
