Simplecom CHT570 USB-C SuperSpeed 7-in-1 Multiport Hub Adapter HDMI 2.0 Docking Station

CHT570 is a portable 7-port multifunctional USB-C multiport adapter that allows you to expand the connectivity of your laptop through a single USB-C connection.

It features three SuperSpeed USB ports, HDMI 2.0 video output, SD / MicroSD card reader, and 100W PD charging.

This multiport adapter offers a convenient solution for users who need to connect multiple devices to their laptop simultaneously. With this adapter, you can easily access your peripherals and increase productivity and convenience without additional hub or adapters.

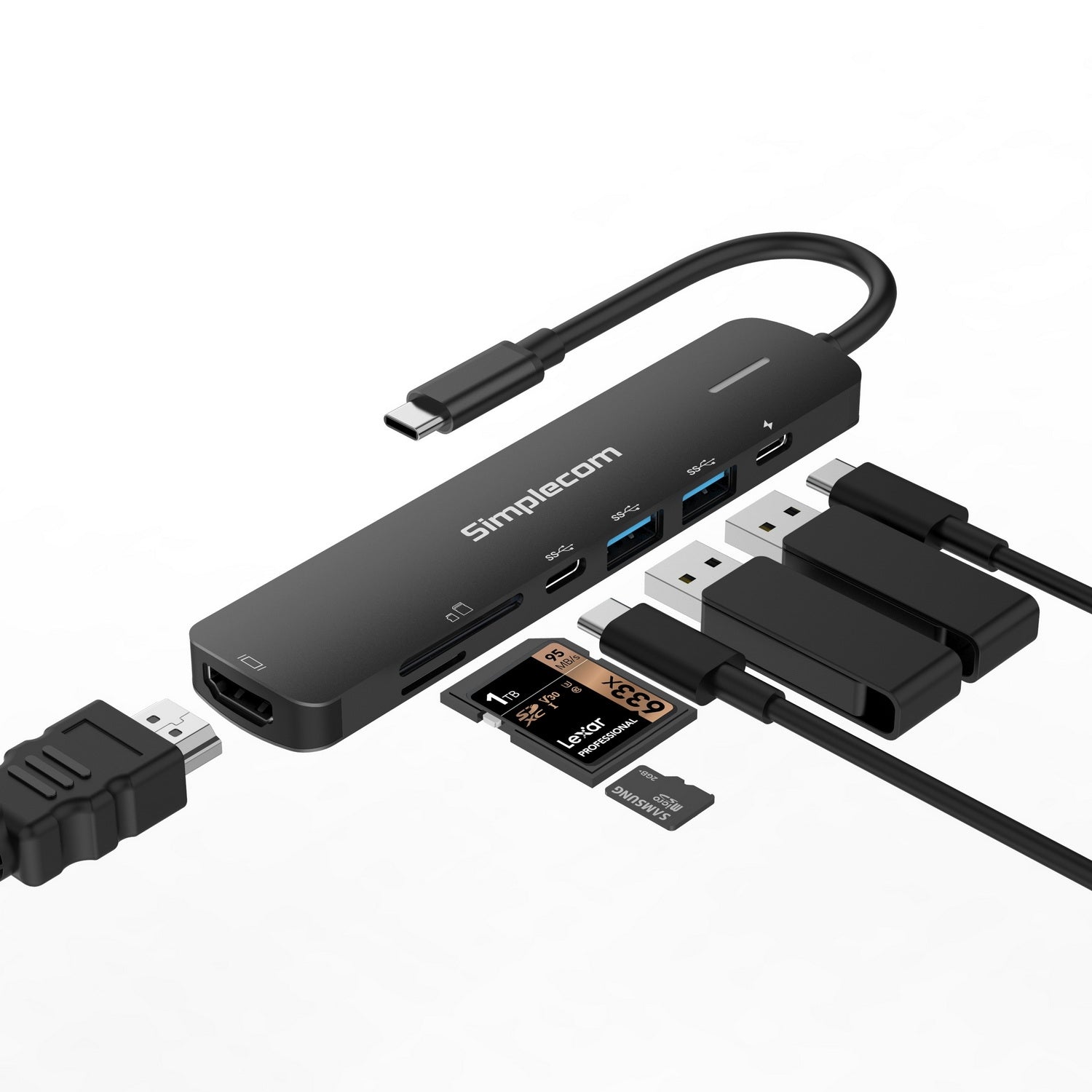

• 7-in-1 USB-C Docking Station
A portable multifunctional USB-C docking station that allows you to expand the connectivity of your laptop or other compatible mobile devices. It features three SuperSpeed USB ports (2x USB-A, 1x USB-C), HDMI 2.0 port, SD / MicroSD card reader slots, and 100W PD charging.

• Support HDMI 2.0 Video Output up to 4K@60Hz
The key feature of HDMI 2.0 is that it supports Ultra HD 4K video output at 60 frames per second. This means that laptop processor which supports DP1.4 can output video at a resolution of 3840x2160 with 60Hz refresh rate. This is important for smooth and fluid video playback, especially when viewing fast-paced content such as sports or action movies.

• SuperSpeed USB Hub
3x SuperSpeed USB ports including 2x USB-A and 1x USB-C ports, with a maximum transfer speed up to 5Gbps, ideal for transferring large amounts of data. It allows you to easily connect a variety of USB peripherals, such as USB storage drives, mouse, keyboard, printer and more.

• SuperSpeed USB Card Reader
Featuring integrated SD and MicroSD card slots, which offers a convenient and speedy solution for reading both types of memory cards. It also allows access to both SD and MicroSD cards simultaneous. SuperSpeed interface allows fast data transfer up to 5Gbps, ideal for transferring large raw or HD media files.

• 100W USB-C Power Delivery
The USB-C PD Port can charge your connected laptop while other ports are working. The USB-C port supports up to 100W Power Delivery charging.

• Stylish and Durable Aluminium Alloy Casing
This USB-C multiport adapter comes in a durable aluminium alloy housing, making for a stylish addition to your desk, whilst to ensure stable performance and protect the circuit, the metal shell facilitates the heat dissipation when the chip and hub work.

Features

• 7-in-1 USB-C multiport docking station for connectivity expansion to your laptop
• Single USB-C to extra USB-A and USB-C ports, HDMI, Card Reader and PD
• USB ports support SuperSpeed data transfer rate up to 5Gbps
• HDMI 2.0 port supports up to 4K@60Hz resolution in Mirror or Extended mode
• USB-C PD port for charging the laptop with up to 100W of power
• 2-Slot Card reader for SD and microSD with SuperSpeed data transfer rate
• Durable & stylish aluminium alloy housing
• Lightweight and portable, easy to carry along when travelling
• Built-in flexible USB-C Cable
• Plug & play, no driver software required

Specifications

• Host Interface: USB-C
• USB Hub: 2x USB-A Female (5Gbps), 1x USB-C Female (5Gbps)
• HDMI Resolutions: Support up to 3840 x 2160p at 60Hz (4K@60Hz)
• Card Reader: SD and MicroSD (SuperSpeed 5Gbps)
• PD Charging: 1x USB-C Female (for charging only), up to 100W
• Operation Temperature: 0 - 45°C
• Housing Material: Aluminium
• Dimensions: 13 x 2.9 x 1.1cm
• Cable Length: 15cm
• Weight: 50g

System Requirements

• USB-C port with DP Alt Mode (DisplayPort Alternate Mode) support
• Compatible with Thunderbolt USB-C port or USB4 port
• Operating system: Windows 10 or above, macOS 10.12 or above, Android, ChromeOS
• Laptop GPU with DP1.4 supports up to 4K@60Hz, laptop GPU with DP1.2 supports up to 4K@30Hz

Important Note

• Before purchasing, please confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function
• 4K@60Hz is supported by laptop GPU with DP1.4 (e.g. Intel 11th Gen Core Mobile Processors or later)
• The USB-C PD port is for PD Charging only, not for data transfer
• For more stable connection when using multiple devices, connect a PD power adaptor to the USB-C PD port for extra power
