Product Description

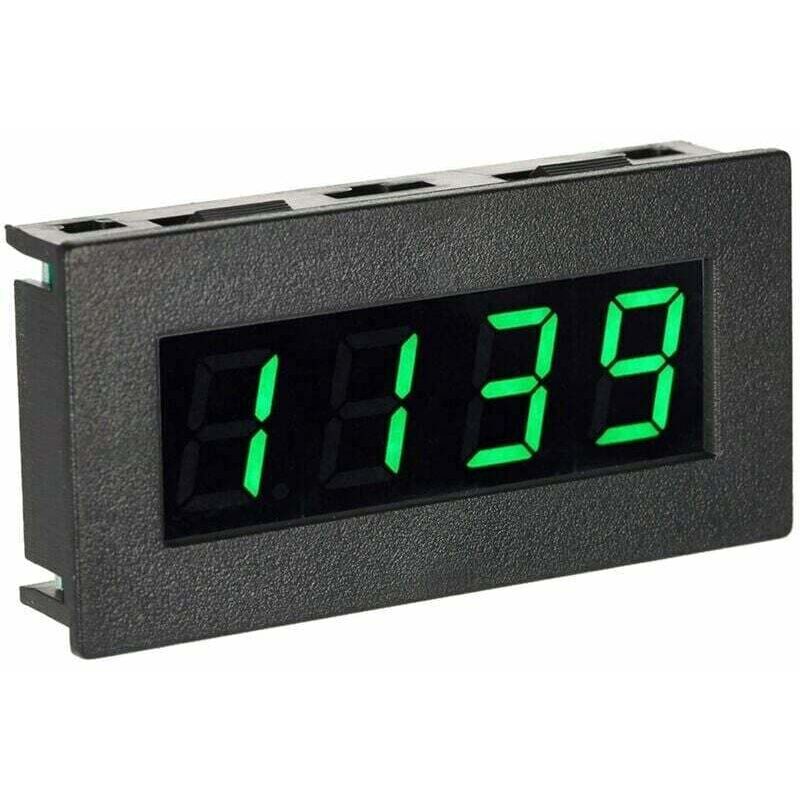

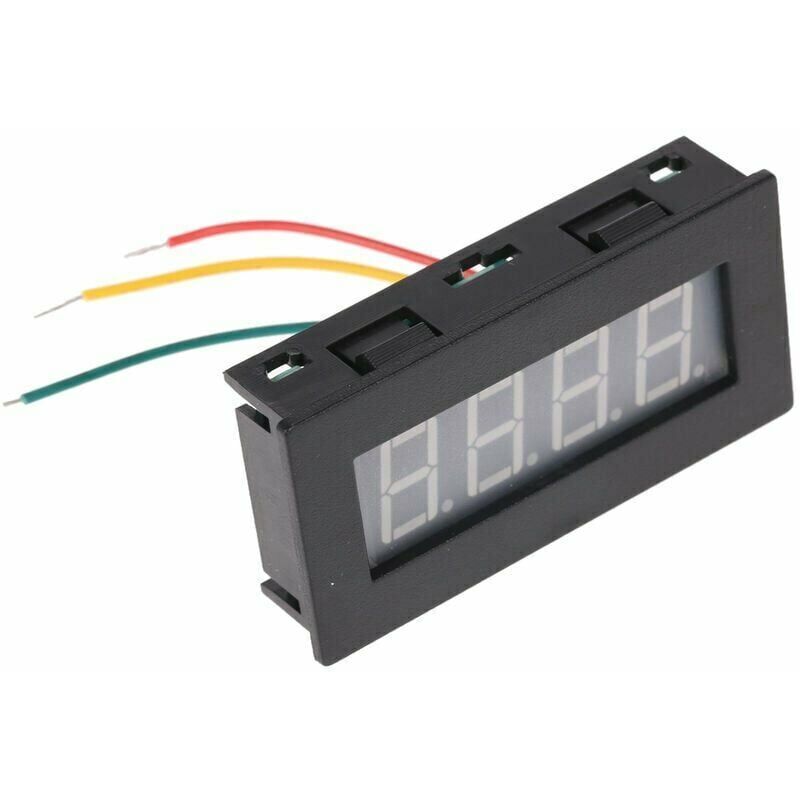

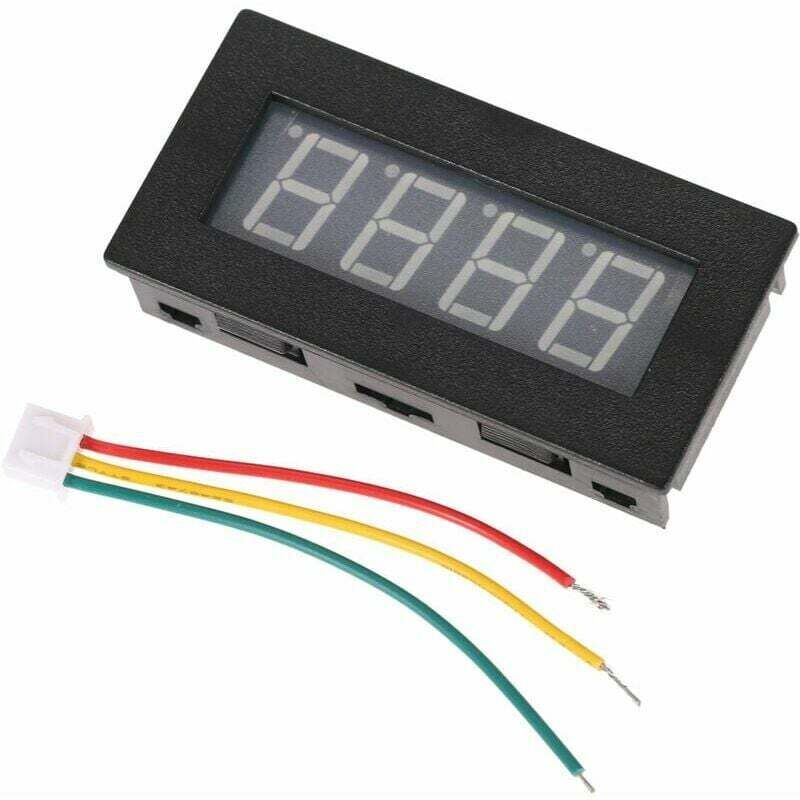

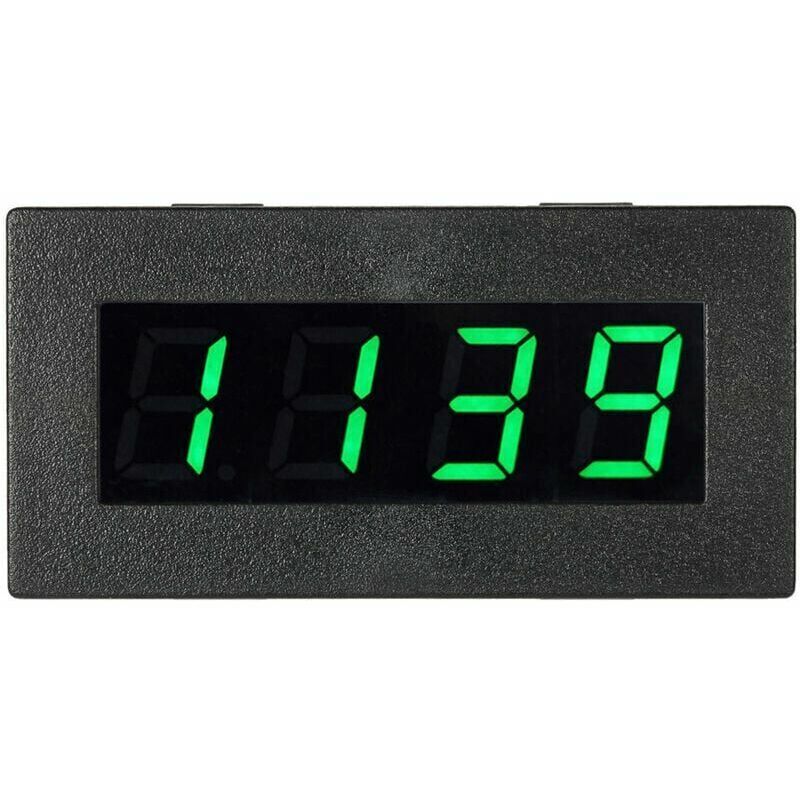

This compact digital tachometer delivers fast, accurate RPM and frequency measurement for a wide range of engines and motors, making it a practical choice for DIY projects, equipment monitoring, workshop testing, and industrial applications. With a clear 0.56" 4-digit LED display, DC 8-15V power input, panel-mount design, and memory-saving settings, it helps users monitor rotation speed efficiently and reliably.
Key Features
-
Wide Measurement Range: Measures rotational speed from 5 to 9999 RPM and frequency from 0 to 98990.1 Hz for versatile engine and motor testing.
-
Fast & Accurate Reading: High-performance response with approx. 2 RPM accuracy below 5000 RPM and approx. 3 RPM above 5000 RPM.
-
Clear LED Display: 0.56" 4-digit LED screen offers easy visibility, with blue, green, or red display color options available.
-
Flexible Signal Compatibility: Supports voltage pulse signals, active contact signals, PNP, and NPN input types for broad application compatibility.
-
Convenient Adjustable Settings: Rate adjustment range from 1 to 99, plus saved parameters after power-off for efficient repeated use.
-
Compact Panel Mount Design: Integrated installation with a lightweight 72*36*20 mm body, ideal for control panels, machines, and testing setups.
Specifications
| Display |
0.56" 4-digit LED |
| Display Color |
Blue / Green / Red (optional) |
| RPM Range |
5-9999 RPM |
| Frequency Range |
0-98990.1 Hz |
| Rate Adjustment |
1-99 (default 01) |
| Power Supply |
DC 8-15V |
| Input Signal |
Voltage pulse, active contact, PNP, NPN |
| Reset Time |
10 s |
| Dimensions |
72*36*20 mm |
| Weight |
25 g |
| Sensor |
Not included |
Usage
Ideal for engine diagnostics, motor speed monitoring, workshop repair, DIY electronics, and industrial control panels. Connect the unit to DC 8-15V, wire the signal input to IN+, adjust the rate as needed, and switch modes to measure RPM or frequency with confidence.
