FEATURES:

1. Motor
Pure copper motors have the characteristics of high magnetic inductive melting point, high temperature resistance, strong power, safe work and high efficiency.

2. Winch solenoid relay
Small or mismatched relays can cause a burning phenomenon. So we need to use a suitable relay for different winches, not necessarily an overload protector if your winch has a perfect relay. The relay is truly insulable, durable and stable, avoiding winch damage due to insufficient relay power.

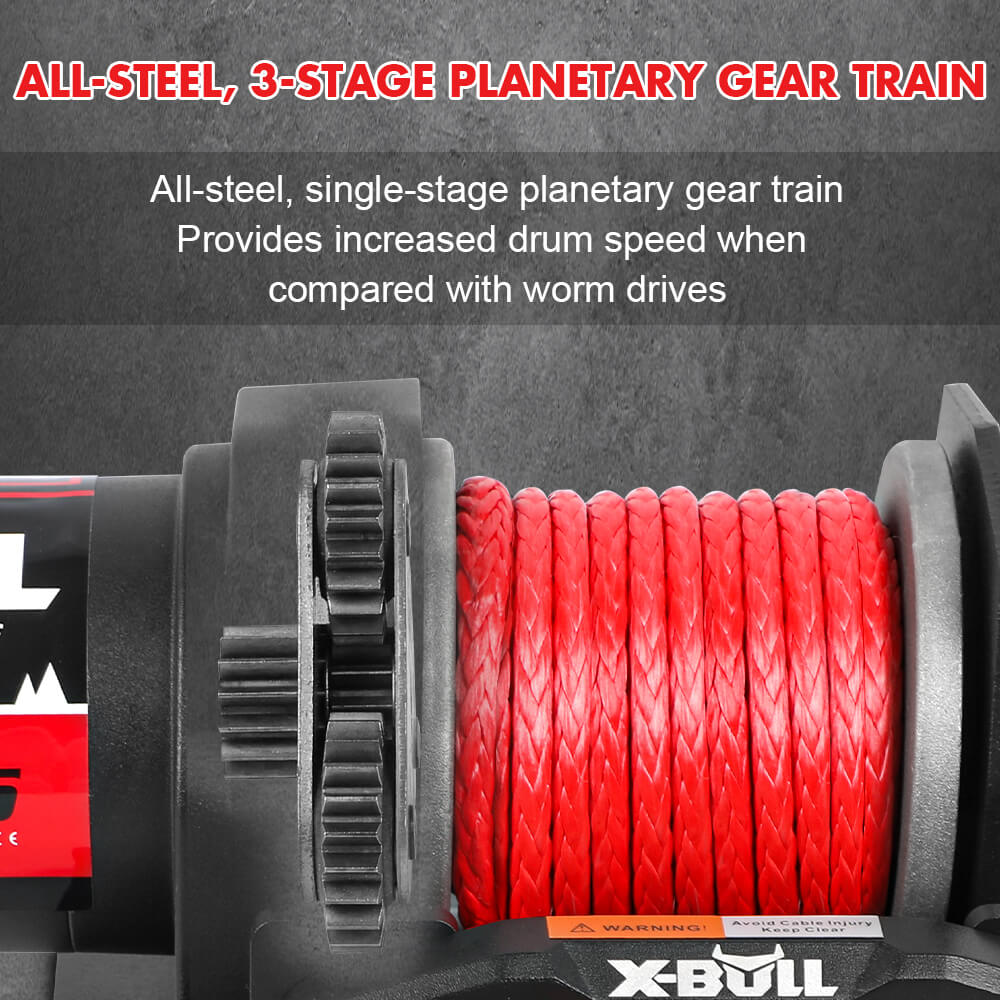

3. Three-stage planetary
The real 3-Stage Planetary enables differential, deceleration or growth, reversal, and more. The combined use of multiple groups of planetary wheel systems can achieve a very large speed ratio, which can achieve coaxial deceleration orgrowth.

4. All-Steel shell
The all-steel shell can protect the winch well, and the black frosted spray paint will not rust.
Diamond-shaped design is more conductive to the heat dissipation of the gearbox to ensure the long operation of the winch.

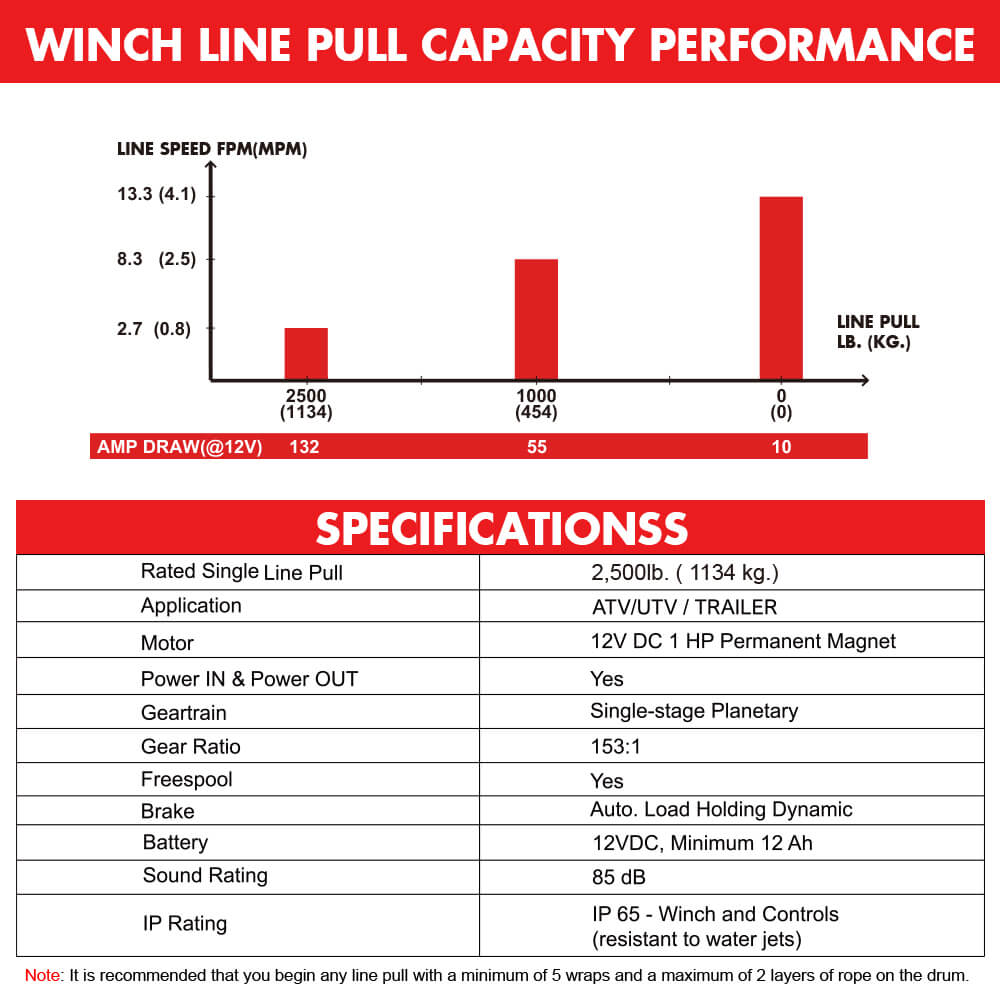

SPECIFICATION:

Brand: X-BULL

Rated line pull: 2500lbs

Motor: 12V DC Permanent Magnet

Nylon rope: 4.8MM*15M

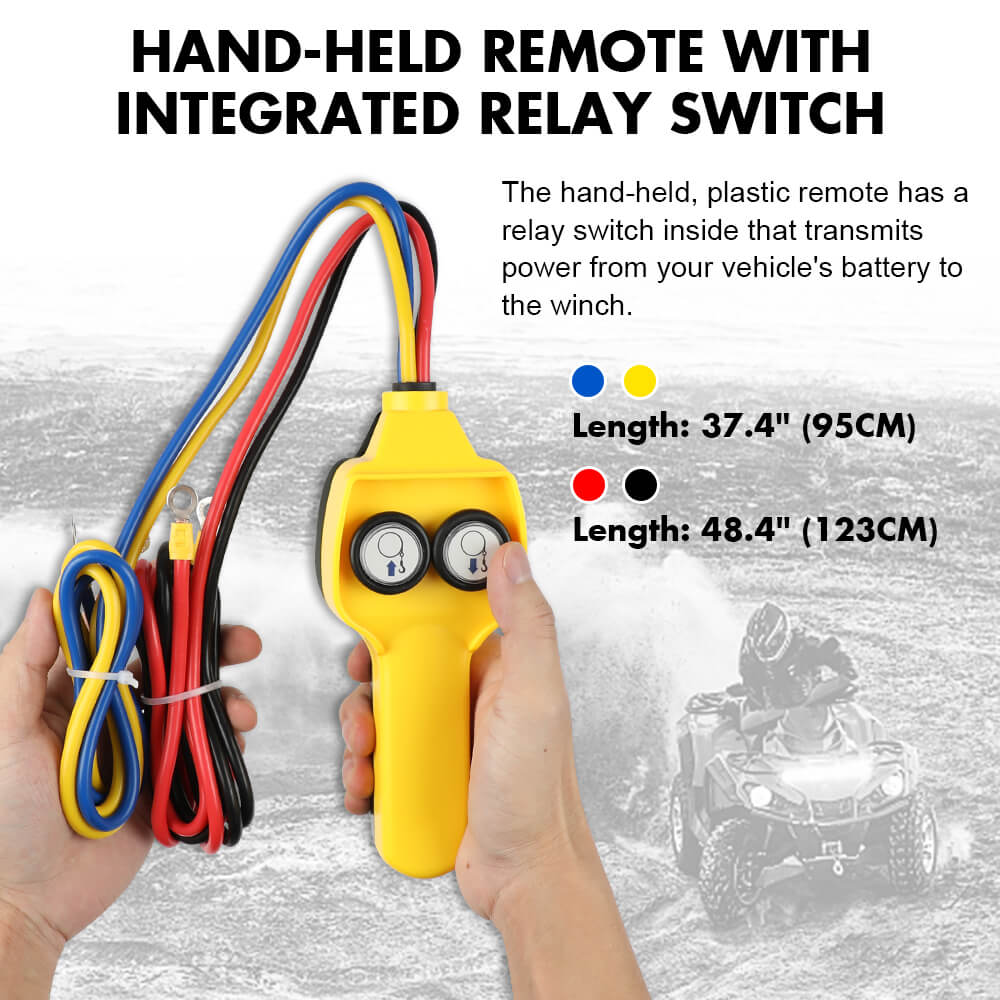

Control: Wired x1

Braking action: Dynamic

Gear train: 3 stage planetary

Voltage:12V

Type: Electric winch

Weight: 8kg

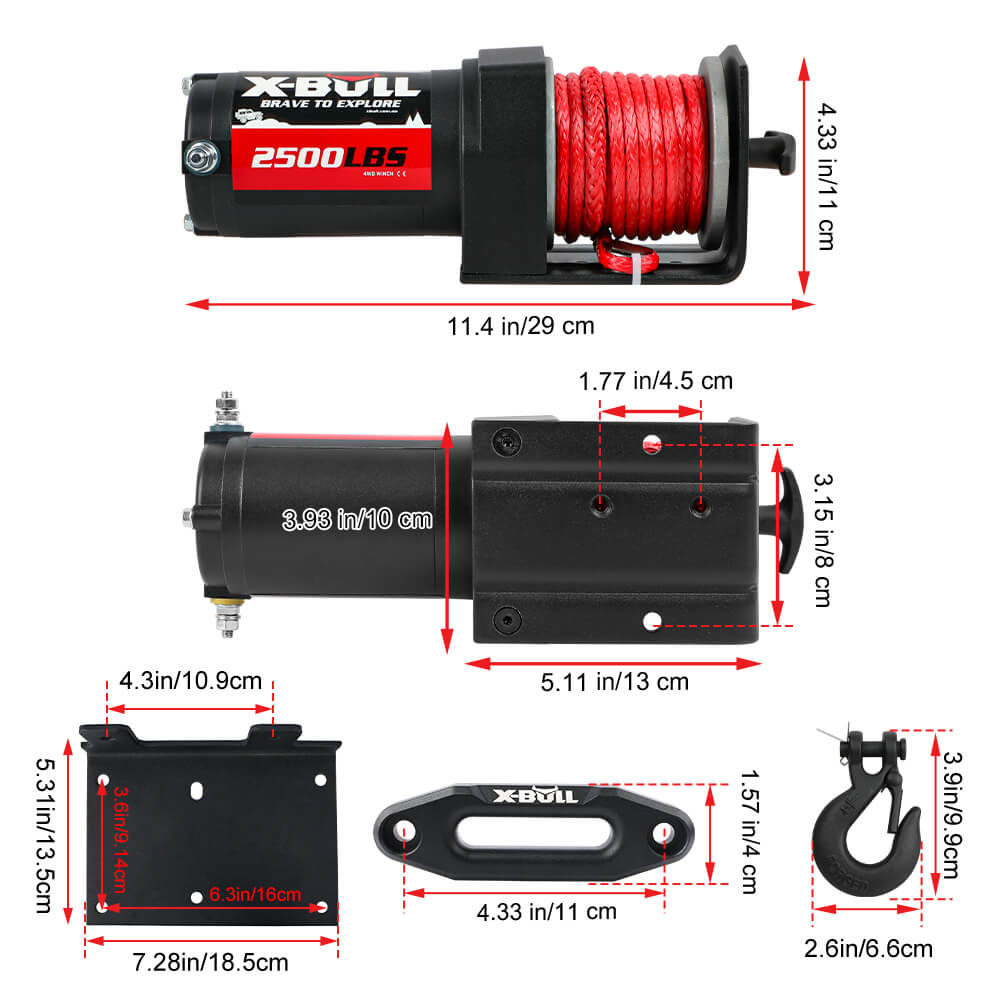

Dimensions:340mm*240mm*170mm

Colour: Red

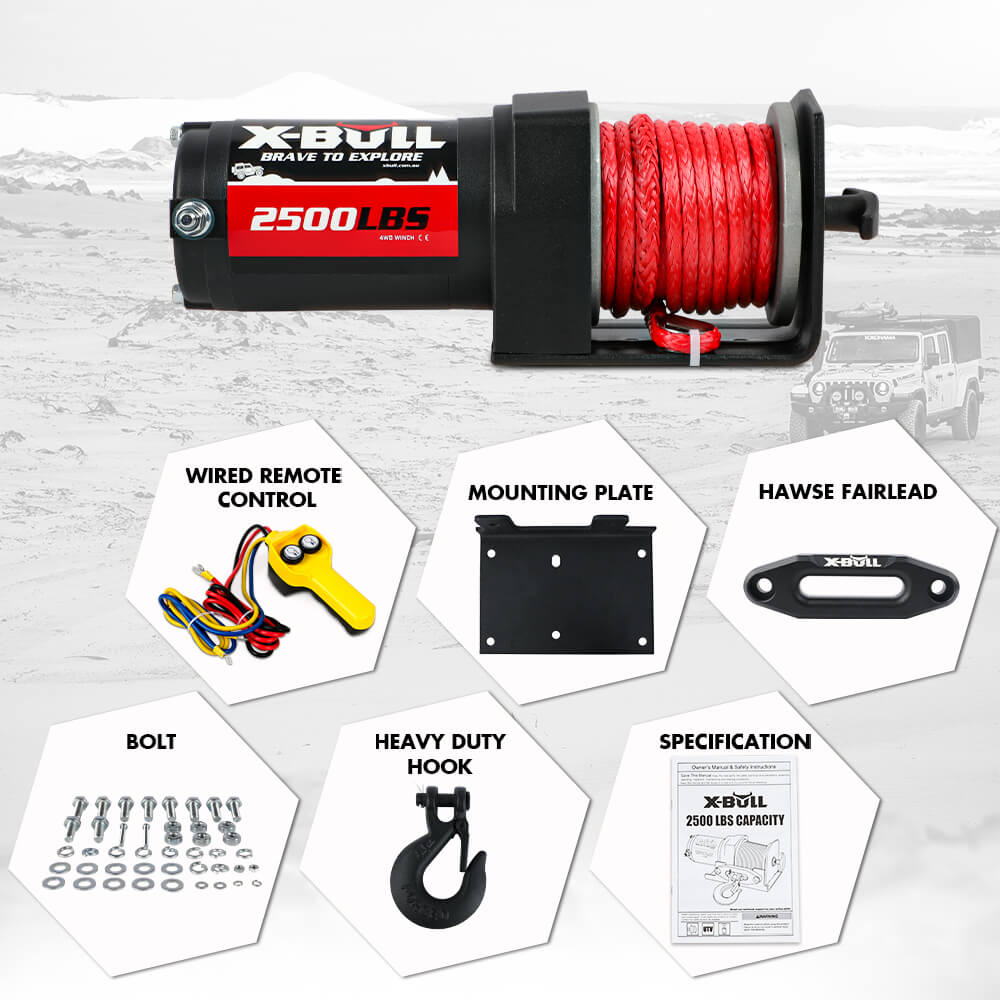

IN THE BOX:

1x 2500LBS winch

1x fairlead

1x hand held remote control

1x set of stainless fitting bolts

1x user manual

1x mounting plate
