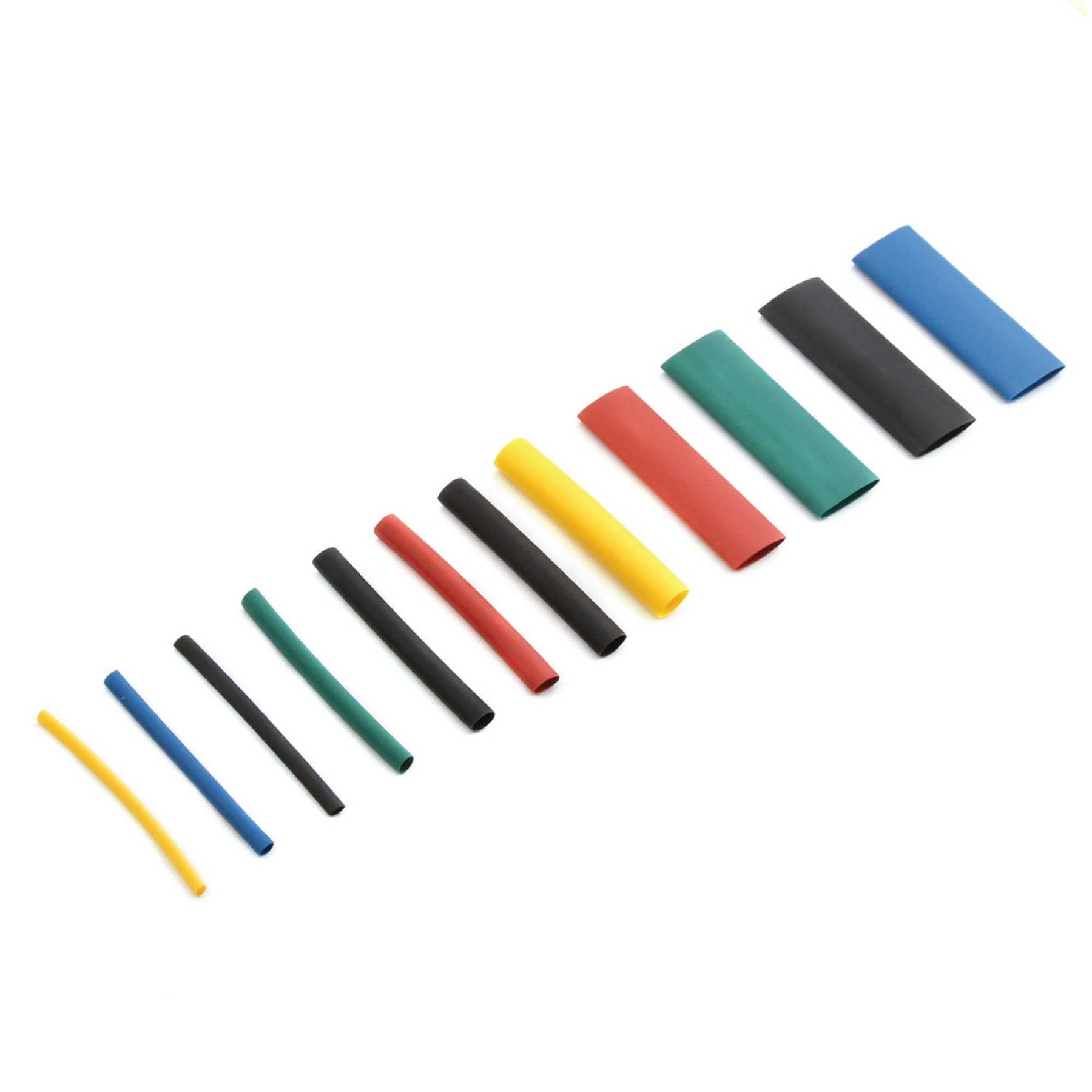

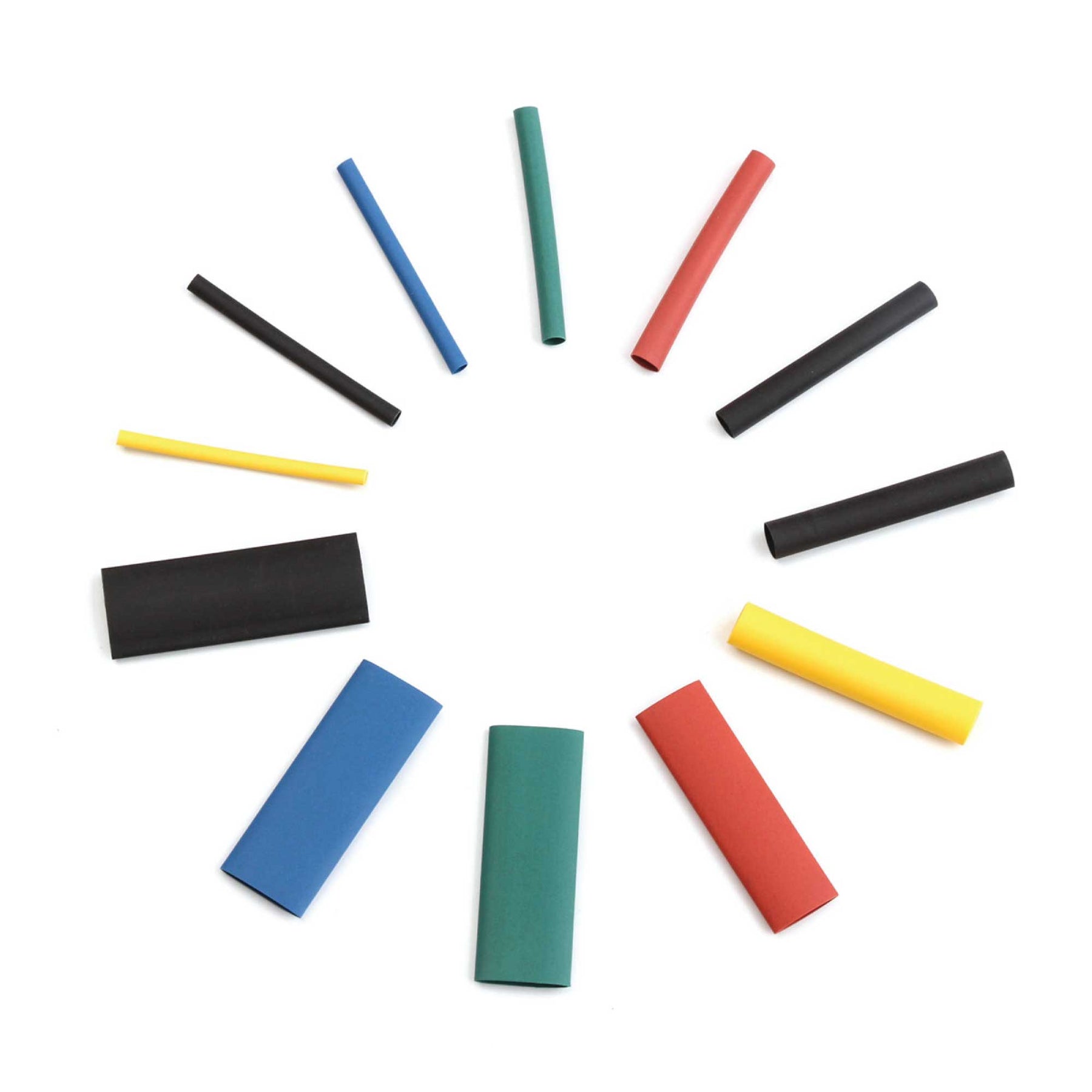

328 pieces Heat Shrink tubing Set includes an assortment of shrink sleeves for the job at hand, providing electrical insulation, mechanical protection, environmental sealing, and strain relief for applications such as back-end connector sealing, breakouts, and connector-to-cable transitions.

Specifications:

• Large collection of heat shrink tubing 5 colours
• Supplied Internal Diameter 1.0mm, 2.0mm, 3.0mm, 4.0mm, 6.0mm, 8.0mm, 10.0mm and 14.0mm
• Colour Black, Red, Yellow, Blue, Green
• Material: Polyolefin
• Shrinkage Ratio: 2: 1 (will maximum shrink to 1/2 its supplied diameter)
• Operating Temperature: -55 ° C to + 125 ° C Minimum Shrink Temp: + 70 ° C
• Full Shrink Temp: + 110 ° C Maximum
• Tensile Strength: 10.4 Mpa
• Dielectric Strength: 15 kV / mm
• Flammability: Flame Retardant
• Approvals: Approved

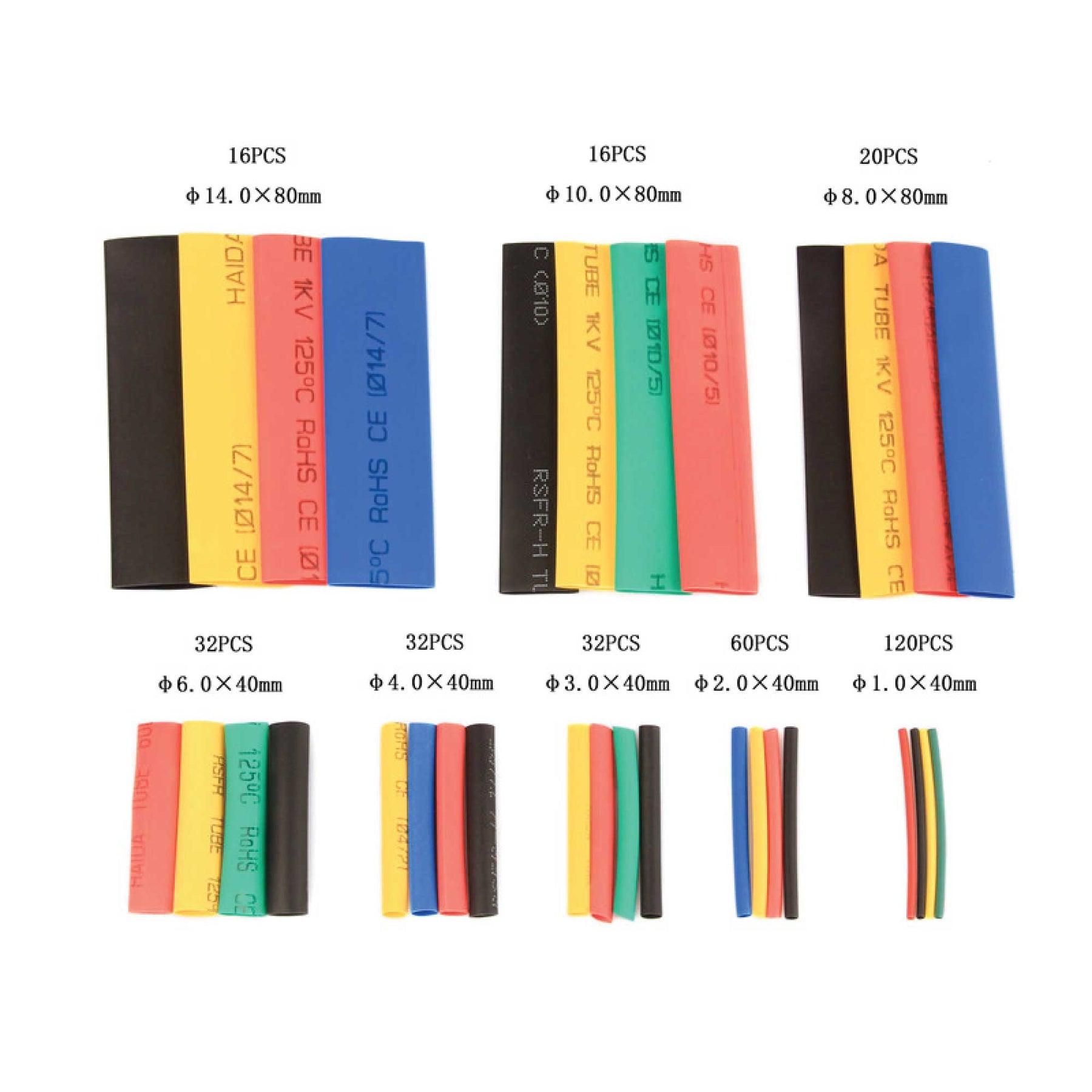

Package Includes:

(Quantity x Internal Diameter x Single Length)

• 120pcs x 1.0 x 40mm
• 60pcs x 2.0 x 40mm
• 32pcs x 3.0 x 40mm
• 32pcs x 4.0 x 40mm
• 32pcs x 6.0 x 40mm
• 20pcs x 8.0 x 80mm
• 16pcs x 10.0 x 80mm
• 16pcs x 14.0 x 80mm
